LACH3-2x4
LACH3-2x2

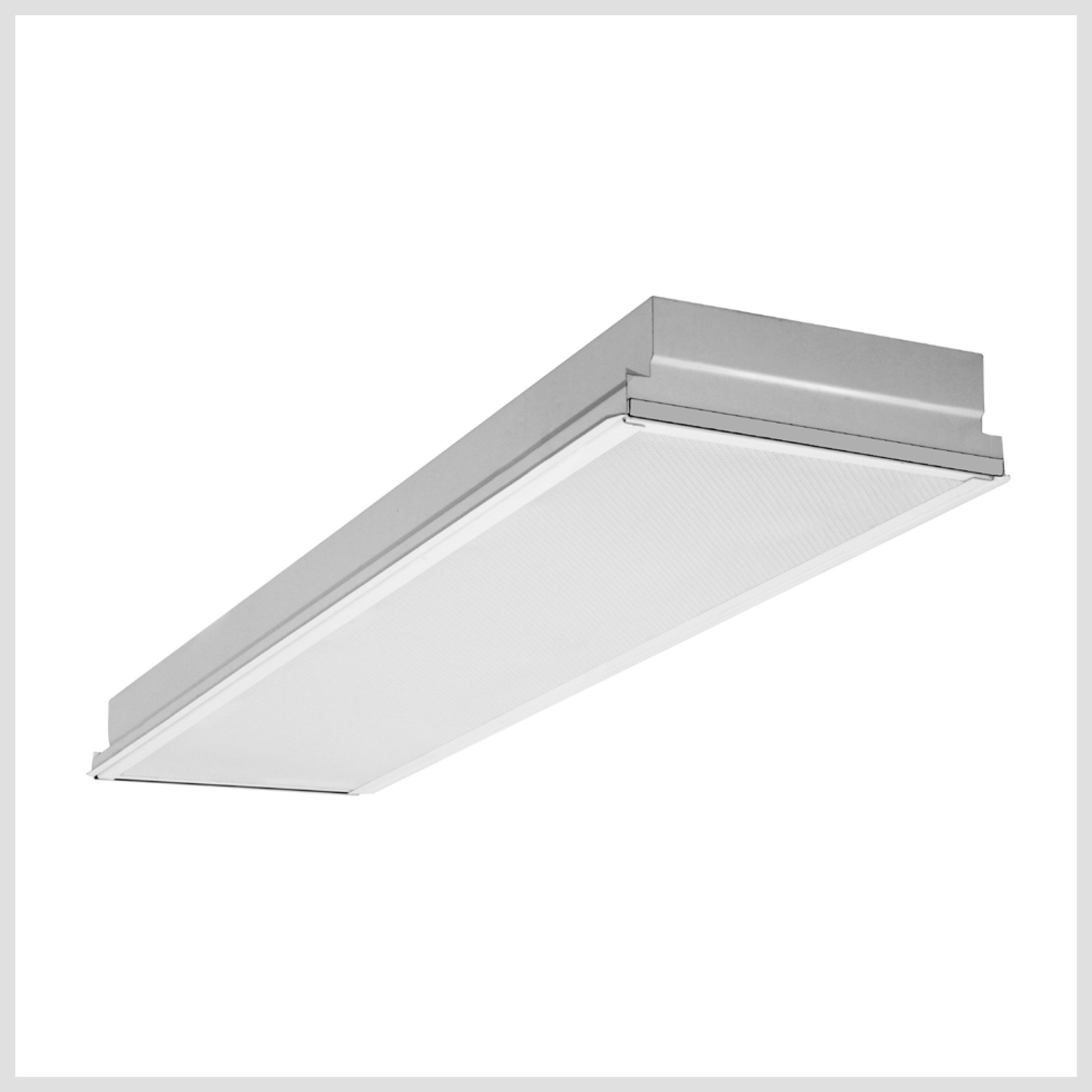

LACH3-1x4

LACH3 – Recessed / Lensed / Shallow Profile 1’x4’-2’x2’-2’x4’


  • Recessed
  • Lensed
  • Shallow Profile

Recessed fluorescent luminaire for T-grid ceilings. 3 3/8” shallow profile. Clear acrylic prismatic diffuser (supplied as standard) is held within a hinged steel frame. Cam latch release opens frame for easy servicing; positive action, no springs. Retaining hook prevents the hinged frame from disengaging accidentally when open. No visible hardware. Drywall frame kit available.

Description

GENERAL DESCRIPTION:

Recessed fluorescent luminaire for T-grid ceilings. 3 3/8” shallow profile. Clear acrylic prismatic diffuser (supplied as standard) is held within a hinged steel frame. Cam latch release opens frame for easy servicing; positive action, no springs. Retaining hook prevents the hinged frame from disengaging accidentally when open. No visible hardware. Drywall frame kit available.

CONSTRUCTION:

Rigid one-piece body constructed from code gauge steel.

FINISH:

Standard finish is baked white enamel.

SHIELDING:

No. 12 clear acrylic prismatic diffuser supplied as standard. Other options available.

ELECTRICAL:

Instant start electronic ballast, 120V-50/60Hz. Other ballasts and voltages available upon request.

CERTIFICATIONS:

CSA and/or UL approved.

Ordering Information
LACH3 SIZE LAMPS** WATTS** SHIELDING REFLECTOR OPTION DRYWALL OPTION VOLTAGE BALLAST / DRIVER
  • 14G = 1’ x 4’
  • 22G = 2’ x 2’
  • 24G = 2’ x 4’
  • 204G = 20″ x 4′ *
    312G = 300mm x 1200mm *
    600G = 600mm x 600mm *
    612G = 600mm x 1200mm *
  • 1
  • 2
  • 3
  • 4
  • 28 = 28W (T5 4′)
    54 = 54W (T5HO 4′)
    32 = 32W (T8 4′)
    14 = 14W (T5 2′)
    24 = 24W (T5HO 2′)
    17 = 17W (T8 2′)
    31 = 31W (T8 U-1 5/8″)
    32 = 32W (T8 U-6″)
    40X = 40W (TT5 Biax)
  • 12 = #12 lens
    12.125 = #12 lens (0.125″)
    19 = #19 lens
    P2A = P2A louver
    SLA = Acrylic Silver Louver
  • M4 = Specular insert
  • FK = Drywall Frame Kit
  • 120
  • 277
  • 347
  • IS
  • PRS
  • RS

* Consult factory
** Not all the options are available for all Modules – see Spec Sheets for details
