LOPA
LOPA-15

LOPA


  • Surface
  • Wraps
  • Shallow Profile

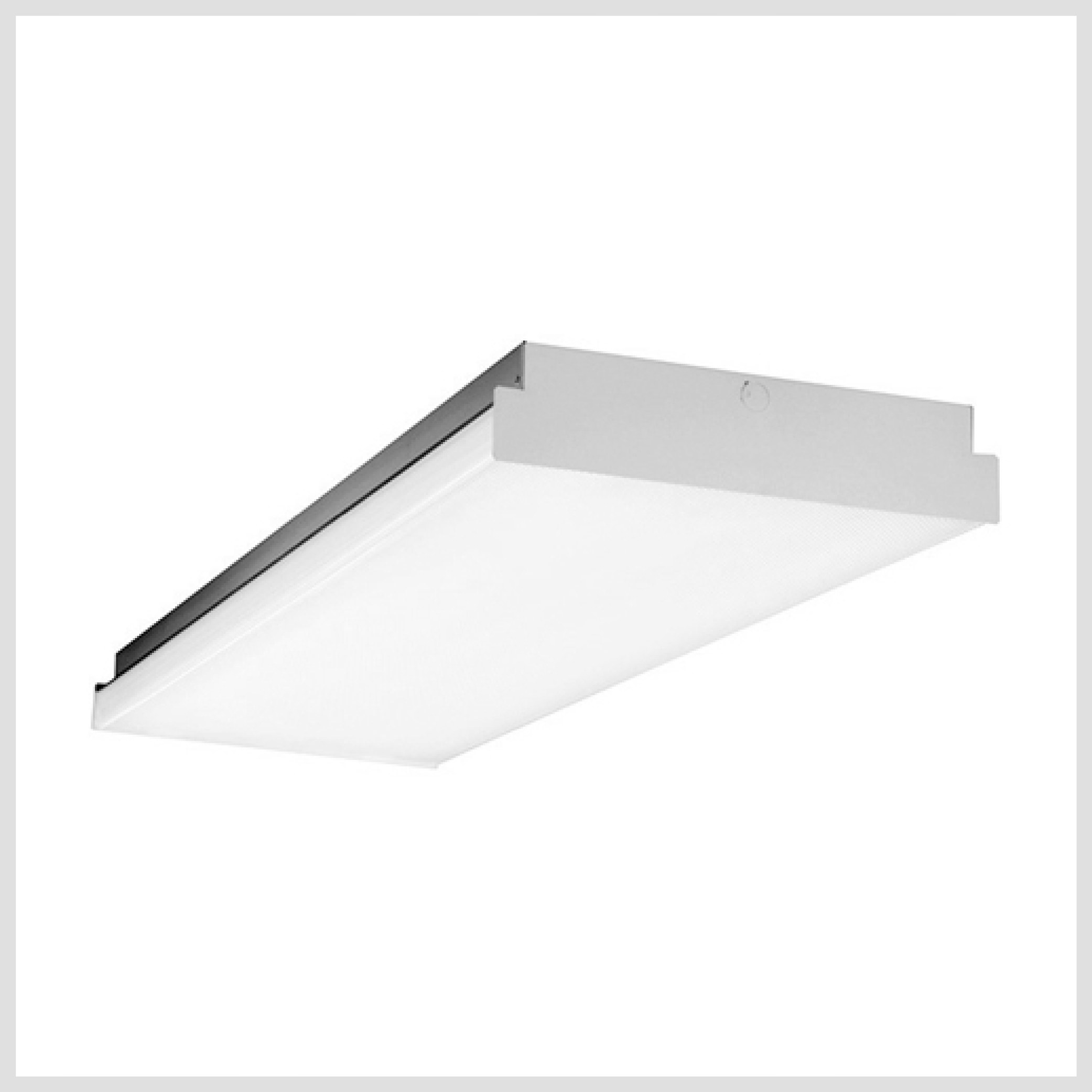

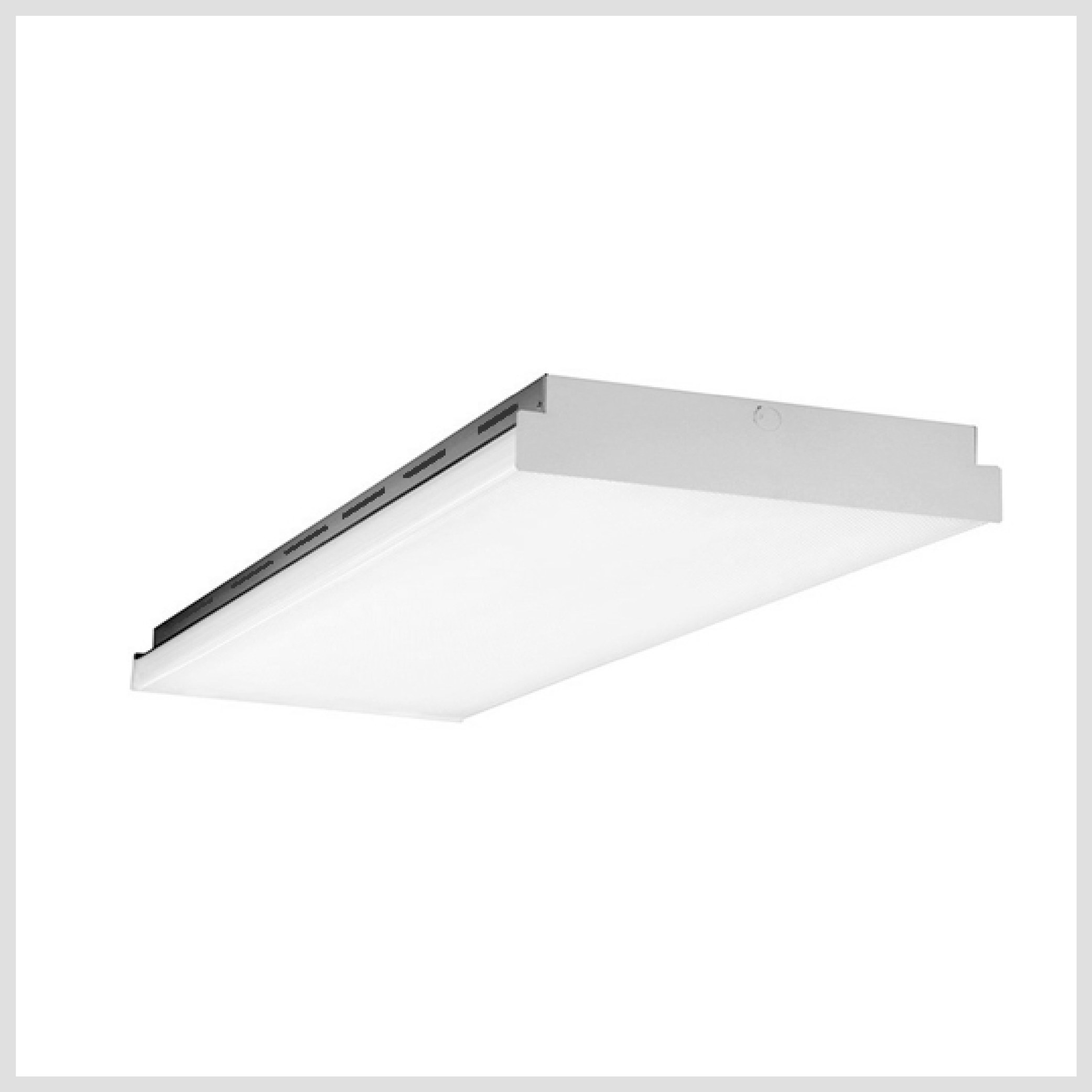

Shallow profile fluorescent luminaire for surface or pendant mounting.
Recommended for general area lighting.
Suitable for continuous row installation.

Description

GENERAL DESCRIPTION:

Shallow profile fluorescent luminaire for surface or pendant mounting. Recommended for general area lighting.
Suitable for continuous row installation.

CONSTRUCTION:

Rigid body constructed from code gauge steel.

FINISH:

Standard finish is baked white enamel.

SHIELDING:

Clear acrylic prismatic wrap-around diffuser with ribbed sides for balanced light control; easily removable, no hardware to loosen.

ELECTRICAL:

Instant start electronic ballast, 120V-50/60Hz. Other ballasts and voltages available upon request.

CERTIFICATIONS:

CSA and/or UL approved.

Ordering Information
LOPA MODULE
WIDTH
MODULE
LENGTH
LAMPS* WATTS SHIELDING REFLECTOR VOLTAGE BALLAST/ DRIVER
  • 11 = 11”
    15 = 15”
  • 4 = 4’
    8 = 8’
  • 1
  • 2
  • 3
  • 4
  • 6
  • 8
  • 28 = 28 (T5)
  • 32 = 32 (T8)
  • 54 = 54 (T5HO)
  • AC = Wrap-around
    Acrylic lens
  • WG = Wireguard
  • WG12 = Wireguard
    with #12 lens
    OMIT for none
  • MR = Maximum Reveal
    White 97%
  • OMIT for B.W.E.
    (Standard White)
  • 120 Volts
  • 277 Volts
  • 347 Volts
  • IS
  • PRS
  • RS

*  not all options are available for all configurations – see Spec Sheets for details
