ECR-G

Germicidal . Suspended . Indirect

1.00 $

General DescriptionDescription Générale

CERTIFICATIONS

DLC-logo
DLC-logo

DESCRIPTION

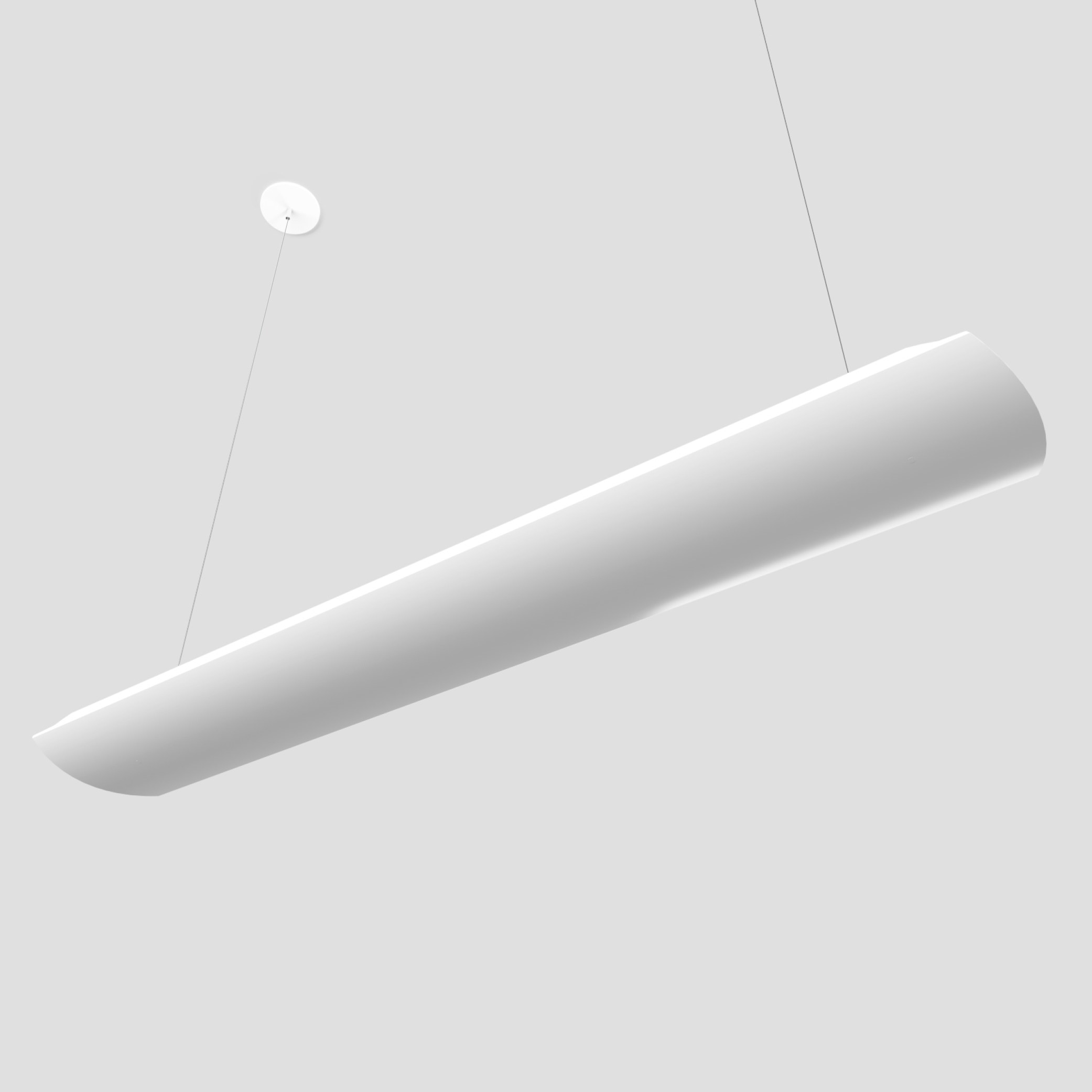

Germicidal luminaire for suspended mounting with aircraft cables. Designed to help clean the air of bacteria, fungi, their spores and inactivating viruses by destroying their ability to replicate. A stylish linear fixture that provides indirect UVc disinfection.

CONSTRUCTION

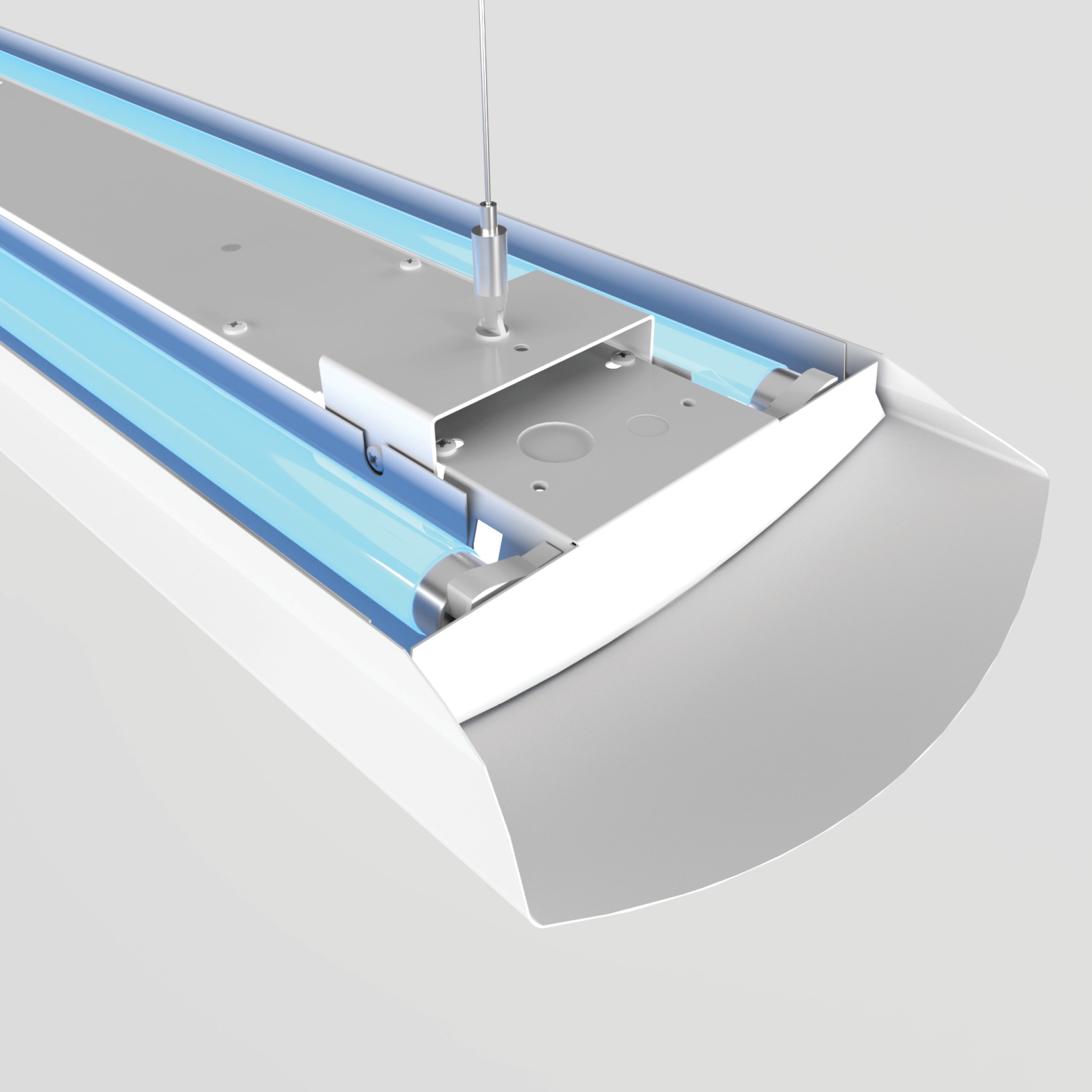

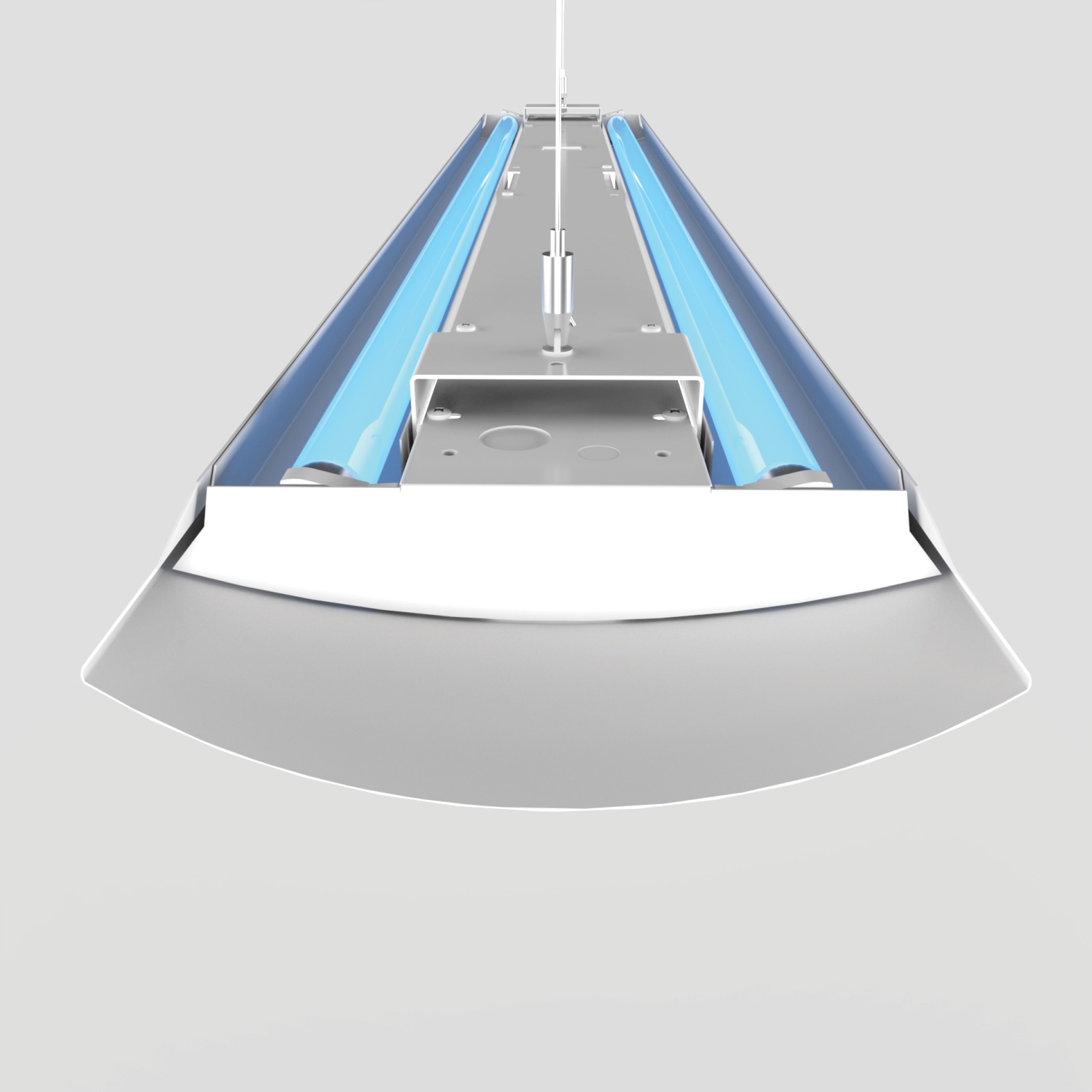

Rigid body constructed from code gauge steel. The luminaire has a ballast, two germicidal lamps and a sensor. The microwave UVc sensor interrupts the power in case of detection of movement and resumes operation after a time that can be adjusted (by DIP switch).

FINISH

Standard finish is white polyester baked powder coat enamel. Custom colours available, consult factory.

ELECTRICAL

1 x 32W / 2 x 32W | 120V

LED

Product ConfiguratorConfigurateur De Produit

ECR-G
Clear

* For available options refer to the Ordering Information tab. * Pour les options disponibles, reportez-vous à l'onglet Informations de commande.
* For wattage and efficacy refer to the Technical Data tab. * Pour la puissance et la efficacité, se référer à l'onglet Données techniques.
SKU: N/A Categories: ,
Specification Sheet
Brochure and Installation Sheet
Consult factory for an installation sheet : info@peerless-electric.com
IES Files
N/A
Technical Data
N/A
Technical Data


CATALOGUE NUMBERLUMENS (lm)CCT (K)WATTAGE (W)EFFICACY (lm/W)
CI-2-25-30K25003000K2794
CI-2-25-35K25003500K2697
CI-2-25-40K25004000K25100
CI-3-28-30K28003000K2999
CI-3-28-35K28003500K27101
CI-3-28-40K28004000K27105
CI-3-32-30K32003000K3398
CI-3-32-35K32003500K3399
CI-3-32-40K32004000K31104
CI-3-36-30K36003000K3797
CI-3-36-35K36003500K3799
CI-3-36-40K36004000K35103
CI-4-32-30K32003000K30106
CI-4-32-35K32003500K30108
CI-4-32-40K32004000K29112
CI-4-36-30K36003000K34105
CI-4-36-35K36003500K34106
CI-4-36-40K36004000K32111
CI-4-40-30K40003000K39104
CI-4-40-35K40003500K38106
CI-4-40-40K40004000K37110
CI-4-44-30K44003000K43103
CI-4-44-35K44003500K43105
CI-4-44-40K44004000K41108
CI-4-50-30K50003000K5198
CI-4-50-35K50003500K50100
CI-4-50-40K50004000K48105

IES Files

GENERAL DESCRIPTION:

LED luminaire for surface mounting for ceiling or wall. Spring-loaded and hinged end caps make installation easy. Ideal for stairwells and other commercial environments. Row mounting available, consult factory.

CONSTRUCTION:

Rigid body constructed from code gauge steel with spring-loaded and hinged end caps.

SHIELDING:

Wrap-around lens.

FINISH:

Standard finish is high gloss white polyester baked powder coat enamel.

ELECTRICAL:

3000K, 3500K, 4000K | 120V-277V or 347V
L80 performance at 60,000 hours minimum. 80 CRI Standard. Other dimming options, lumen options, 90CRI and lengths available. Consult factory.

CERTIFICATIONS:

Approved to UL1598 and CSA C22.2 No. 250 standards**
Suitable for damp locations.
*LED Five (5) year limited warranty.
**Normal temperature: -20 degrees Celsius to +25 degrees Celsius.

Installation Sheet
