LDXR

Linear . Direct . Recessed

1.00 $

General DescriptionDescription Générale

CERTIFICATIONS

DLC-logo
DLC-logo

DESCRIPTION

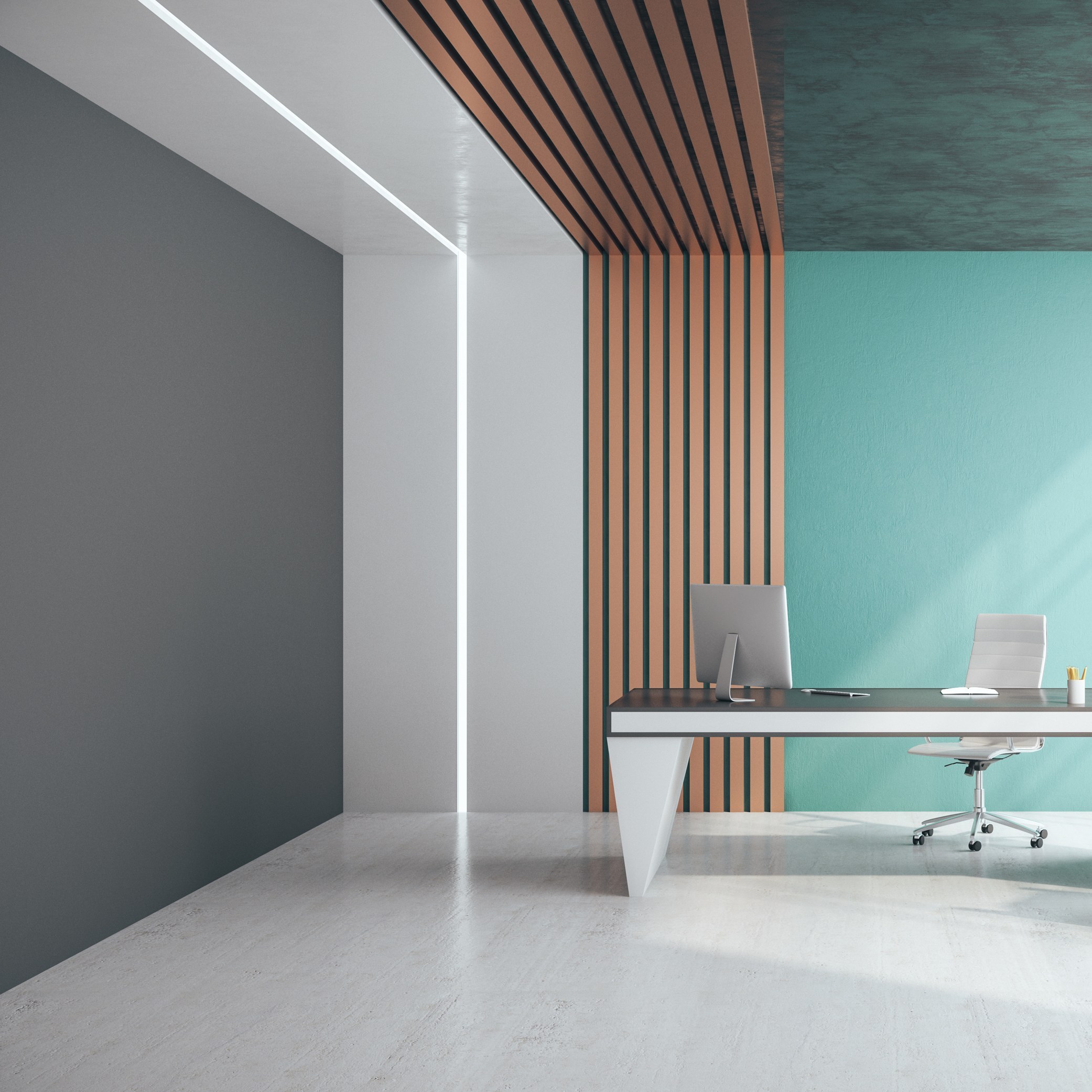

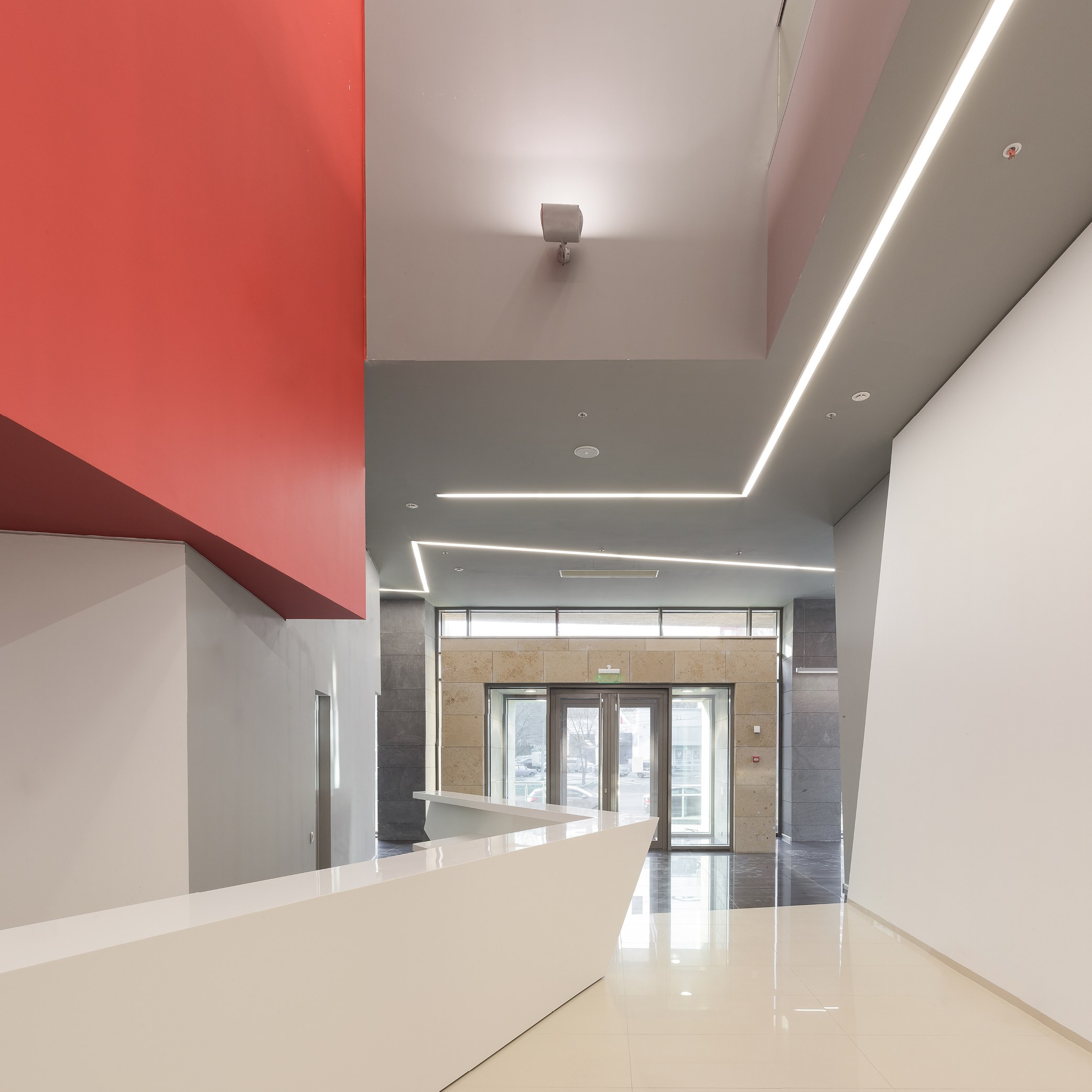

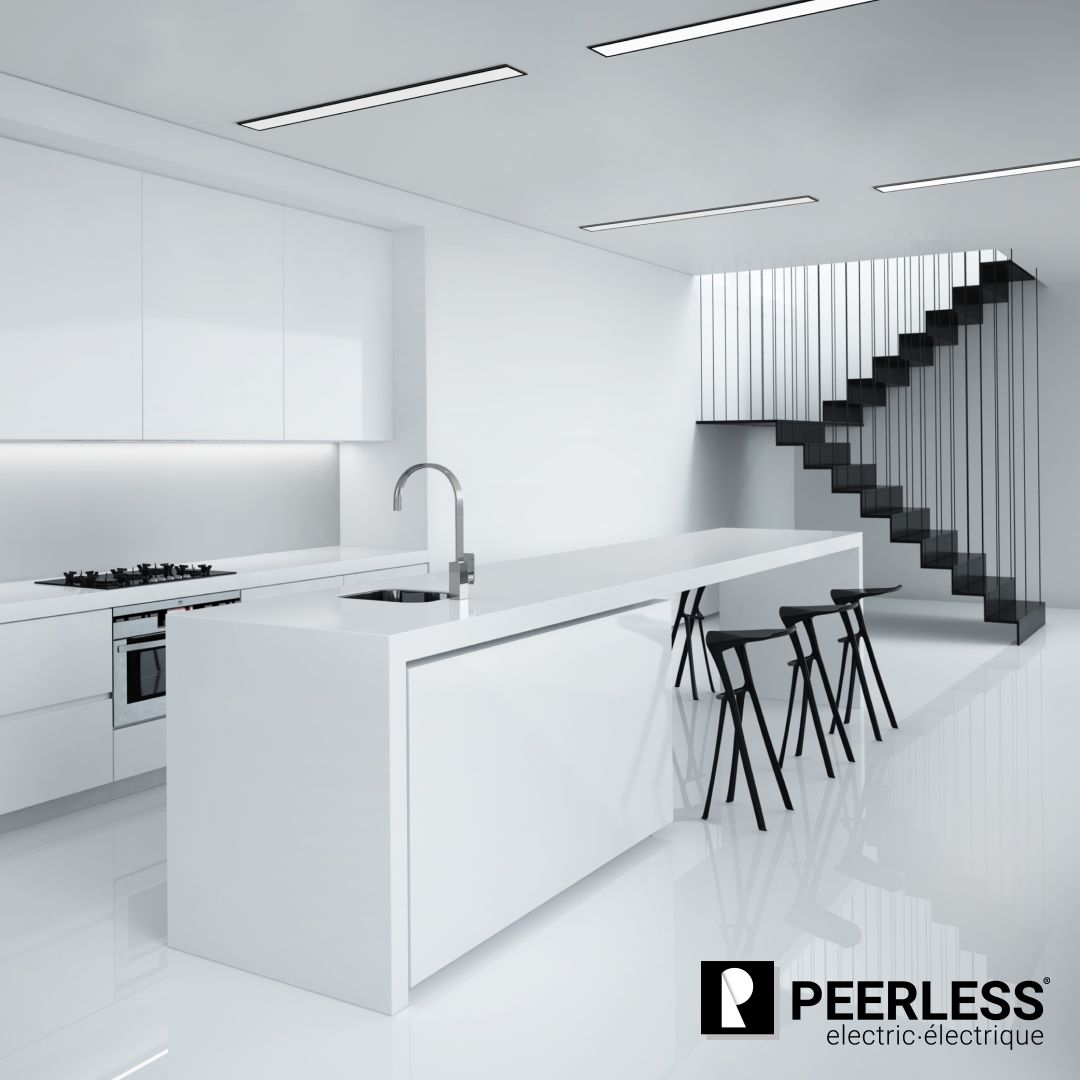

LED luminaire for recessed installation. Custom configurations, corners and patterns available, consult factory. Features a minimalistic and clean design providing a superior quality of lighting. Ideal for commercial or architectural environments. Row mounting available, consult factory.

CONSTRUCTION

Extruded aluminum body.

SHIELDING

Snap-in flat frosted acrylic lens.

FINISH

High gloss white polyester baked powder coat enamel.

ELECTRICAL

3000K, 3500K, 4000K | 120V-277V | 347V

LEDLED

Product ConfiguratorConfigurateur De Produit

LDXR
Clear

* For available options refer to the Ordering Information tab. * Pour les options disponibles, reportez-vous à l'onglet Informations de commande.
* For wattage and efficacy refer to the Technical Data tab. * Pour la puissance et la efficacité, se référer à l'onglet Données techniques.
SKU: N/A Categories: ,

SPECIFICATION SHEET

Specification Sheet

Specification Sheet

Technical Data

ORDERING CODELUMENSCCTWATTAGEEFFICACY
LDXR-40-2-T-100-40K1000lm/ft4000K22W91lm/W
LDXR-40-4-T-100-40K1000lm/ft4000K43W94lm/W
LDXR-40-6-T-100-40K1000lm/ft4000K64W94lm/W
LDXR-40-8-T-100-40K1000lm/ft4000K84W96lm/W
LDXR-60-2-T-100-40K1000lm/ft4000K19W106lm/W
LDXR-60-4-T-100-40K1000lm/ft4000K36W112lm/W
LDXR-60-6-T-100-40K1000lm/ft4000K53W112lm/W
LDXR-60-8-T-100-40K1000lm/ft4000K72W112lm/W
LDXR-95-2-T-100-40K1000lm/ft4000K18W114lm/W
LDXR-95-4-T-100-40K1000lm/ft4000K33W121lm/W
LDXR-95-6-T-100-40K1000lm/ft4000K49W122lm/W
LDXR-95-8-T-100-40K1000lm/ft4000K66W121lm/W

Technical Data

CATALOGUE NUMBERLUMENS (lm)CCT (K)WATTAGE (W)EFFICACY (lm/W)
LDXR-40-2-T-100-40K-FA-MV1000lm/ft4000K2291
LDXR-40-4-T-100-40K-FA-MV1000lm/ft4000K4394
LDXR-40-6-T-100-40K-FA-MV1000lm/ft4000K6494
LDXR-40-8-T-100-40K-FA-MV1000lm/ft4000K8496
LDXR-60-2-T-100-40K-FA-MV1000lm/ft4000K19106
LDXR-60-4-T-100-40K-FA-MV1000lm/ft4000K36112
LDXR-60-6-T-100-40K-FA-MV1000lm/ft4000K53112
LDXR-60-8-T-100-40K-FA-MV1000lm/ft4000K72112
LDXR-95-2-T-100-40K-FA-MV1000lm/ft4000K18114
LDXR-95-4-T-100-40K-FA-MV1000lm/ft4000K33121
LDXR-95-6-T-100-40K-FA-MV1000lm/ft4000K49122
LDXR-95-8-T-100-40K-FA-MV1000lm/ft4000K66121

IES Files

GENERAL DESCRIPTION:

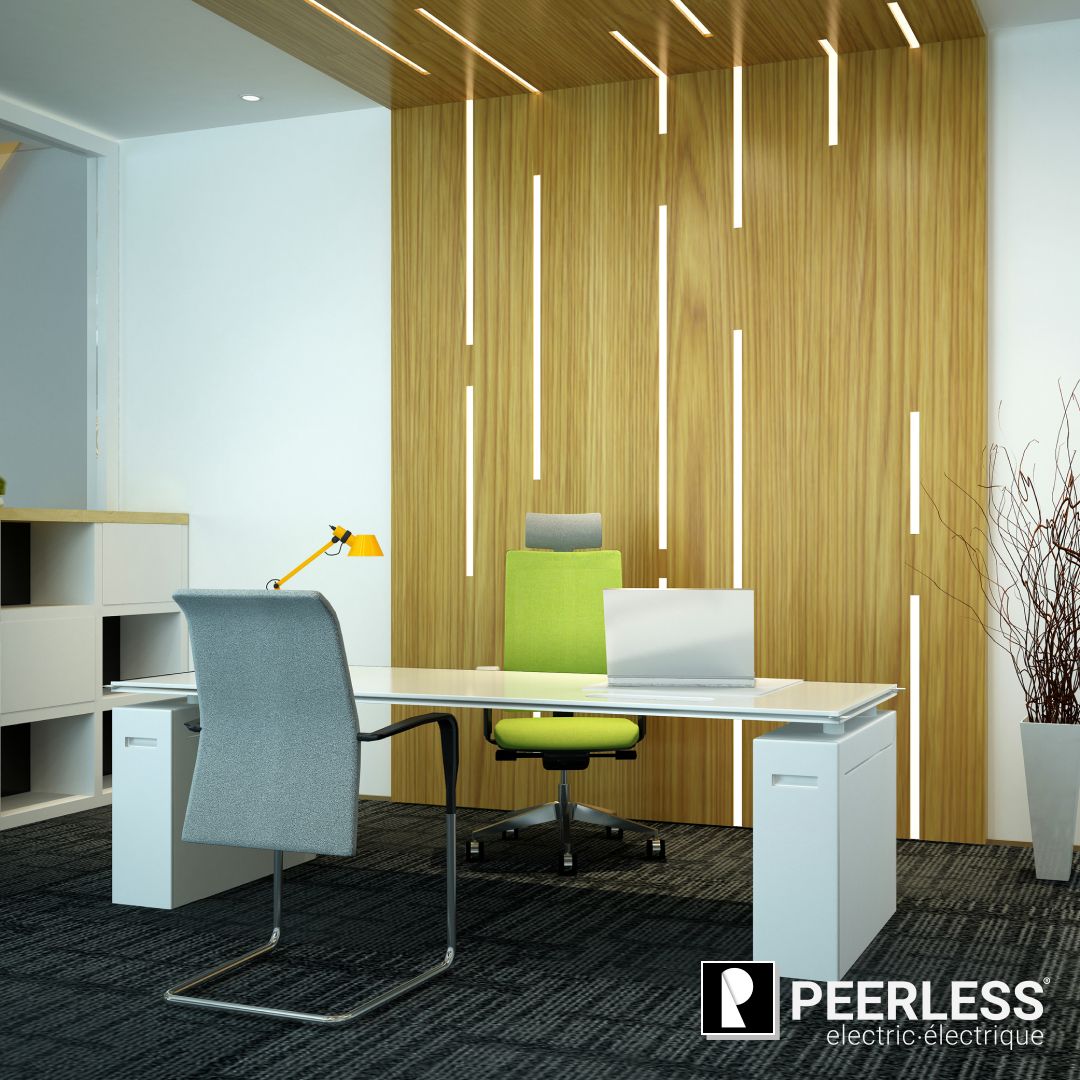

LED luminaire for recessed or wall mounted installation available. Custom configurations, corners and patterns available, consult factory. Features a minimalistic and clean design providing a superior quality of lighting. Ideal for commercial or architectural environments. Row mounting available, consult factory.

CONSTRUCTION:

Extruded aluminum body.

SHIELDING:

Snap-in flat frosted acrylic lens.

FINISH:

High gloss white polyester baked powder coat enamel.

ELECTRICAL:

3000K, 3500K, 4000K, 5000K | 120V-277V or 347V
L80 performance at 60,000 hours minimum. 80 CRI Standard.Other dimming options, lumen options, 90CRI and lengths available.Consult factory.

CERTIFICATIONS:

Approved to UL1598 and CSA C22.2 No. 250 standards**
Suitable for damp locations.
*LED Five (5) year limited warranty.
**Normal temperature: -20 degrees Celsius to +25 degrees Celsius.
