Name: TB
SKU: 31707
Price: 1.00 CAD
Availability: InStock

TB

T-Bar

1.00 $

General DescriptionDescription Générale

CERTIFICATIONS

DESCRIPTION

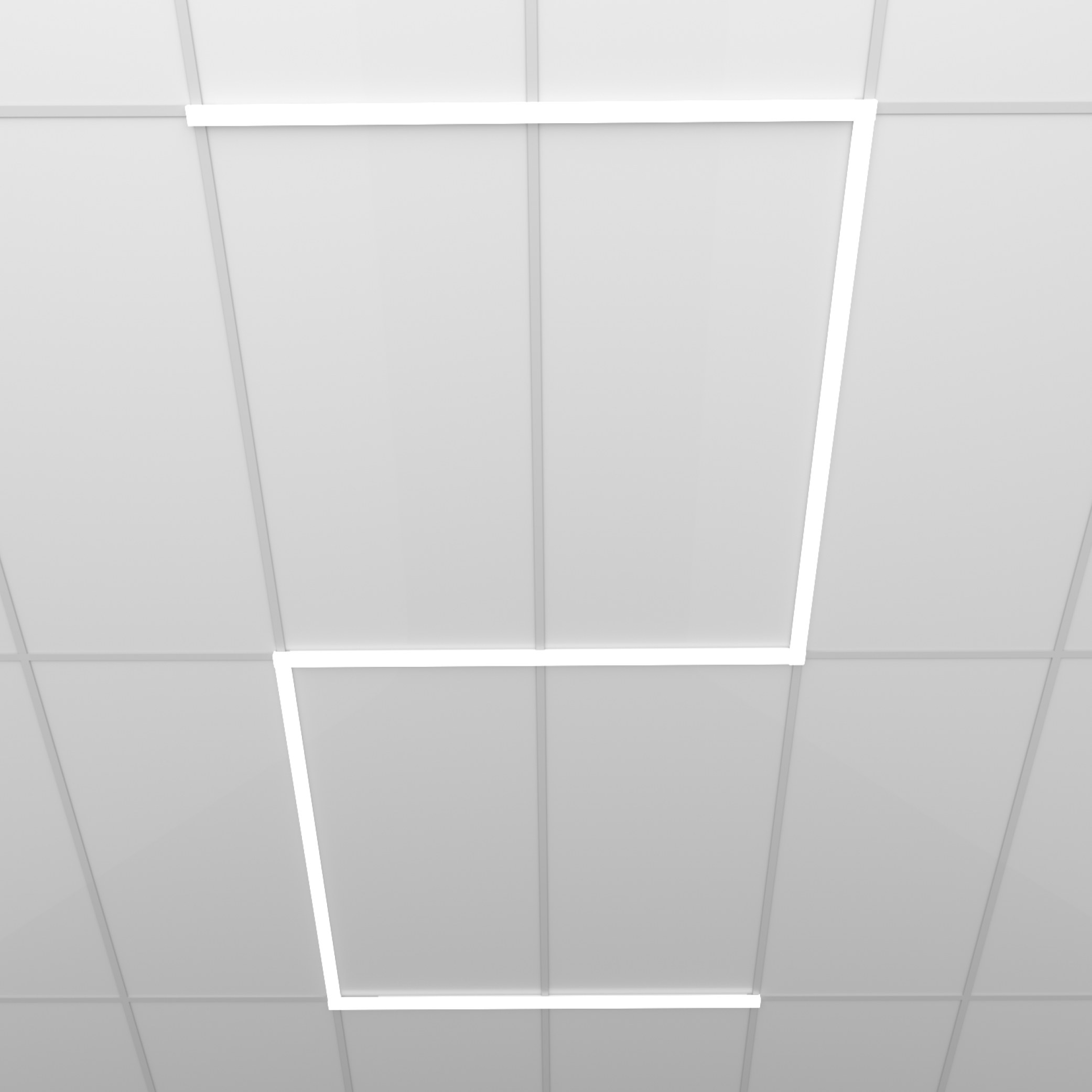

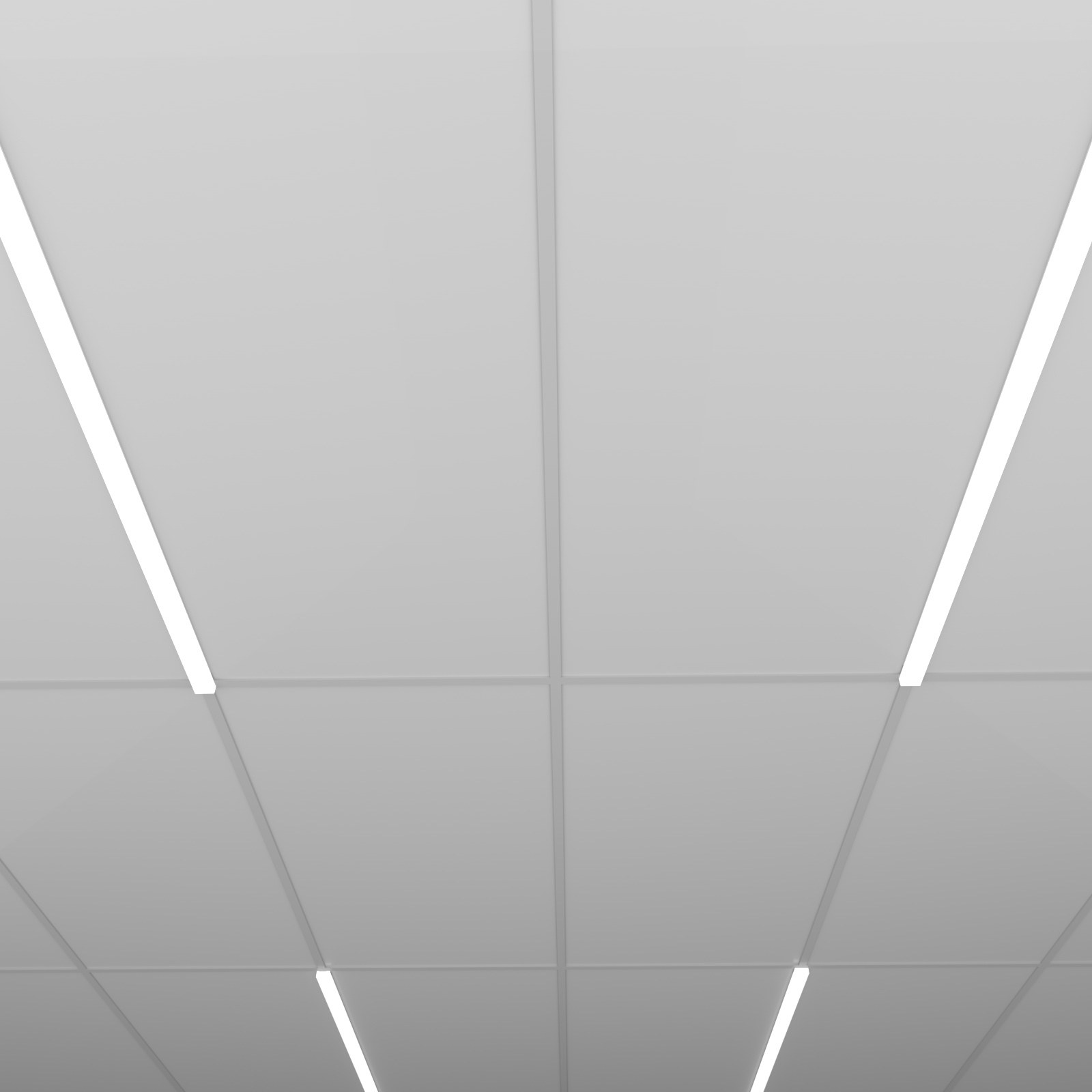

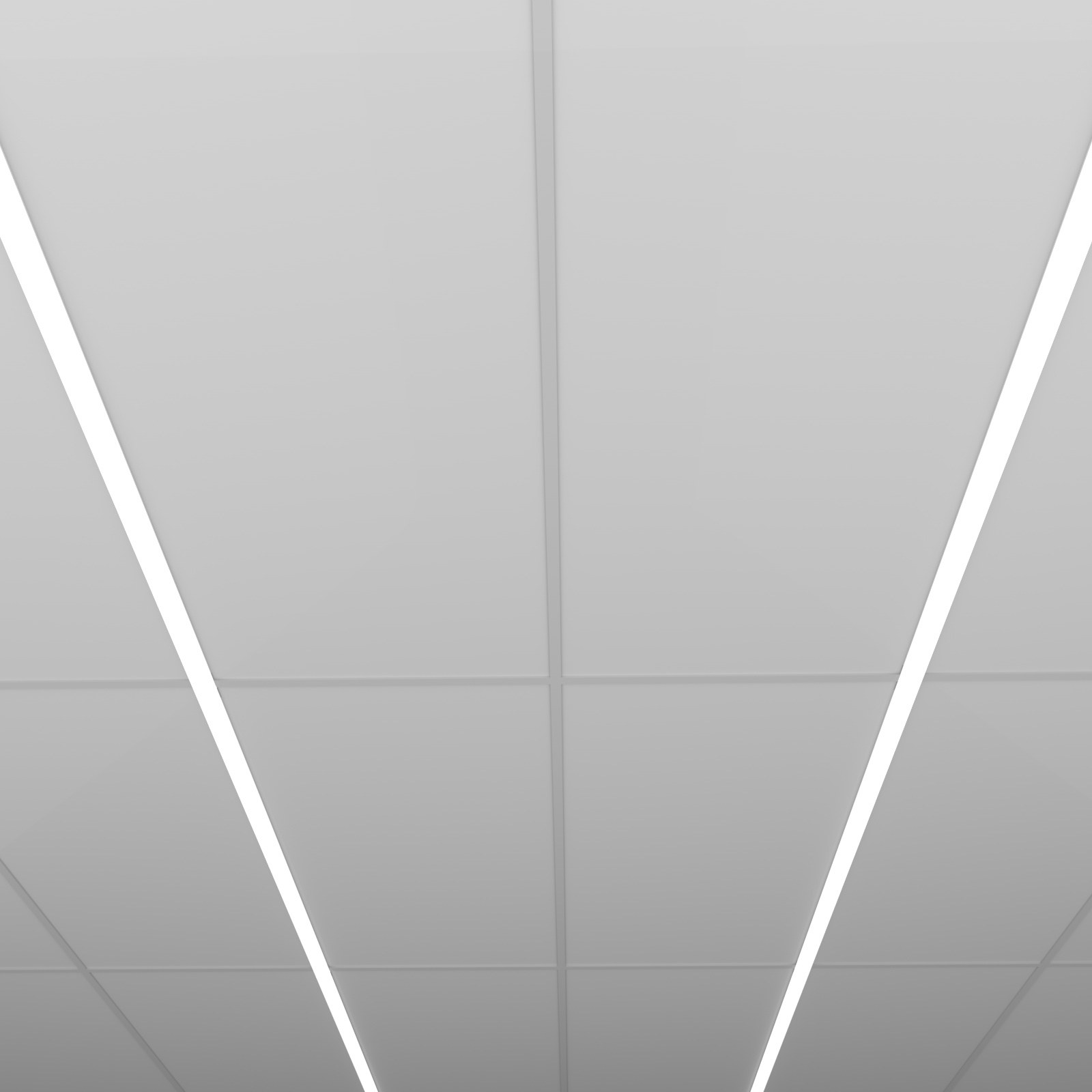

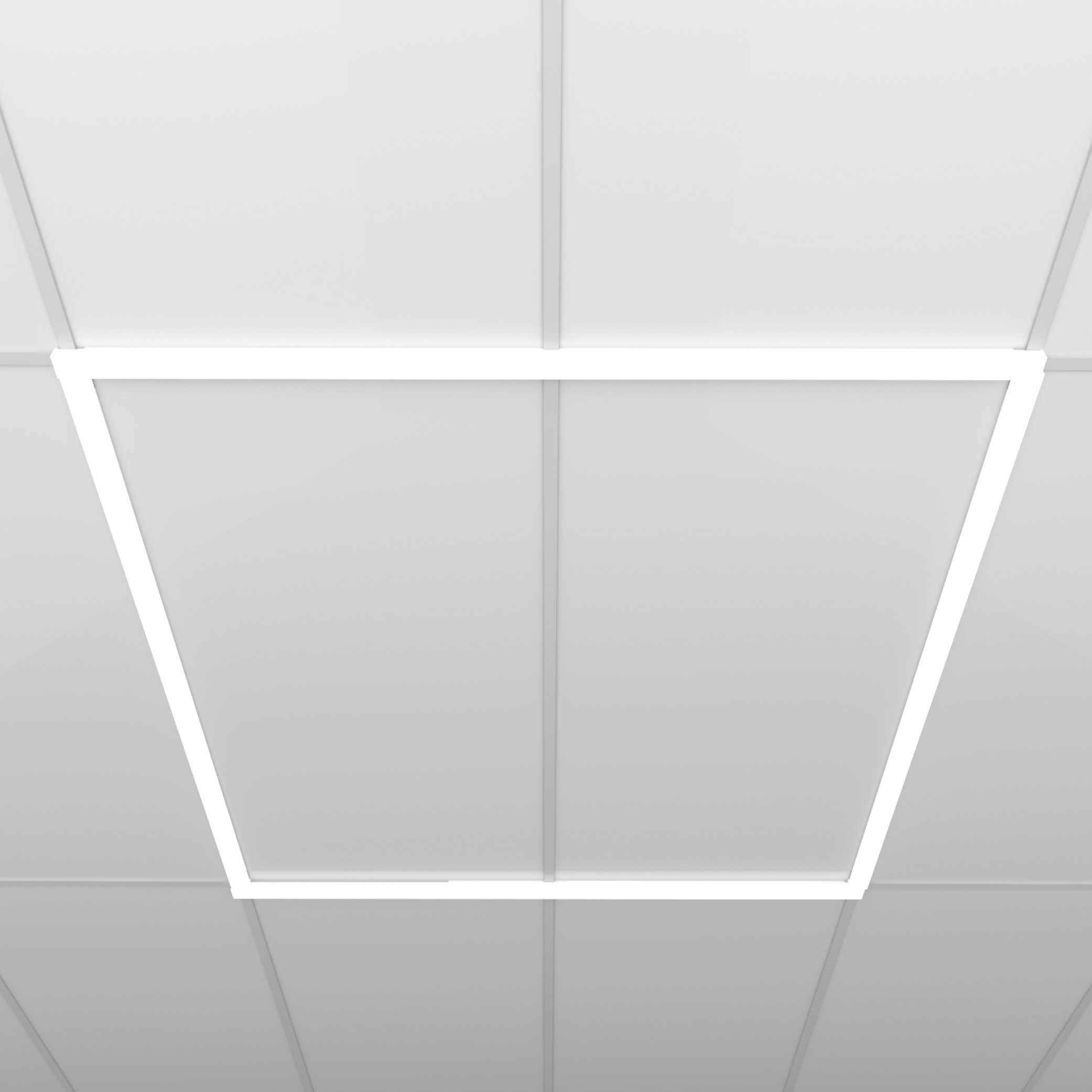

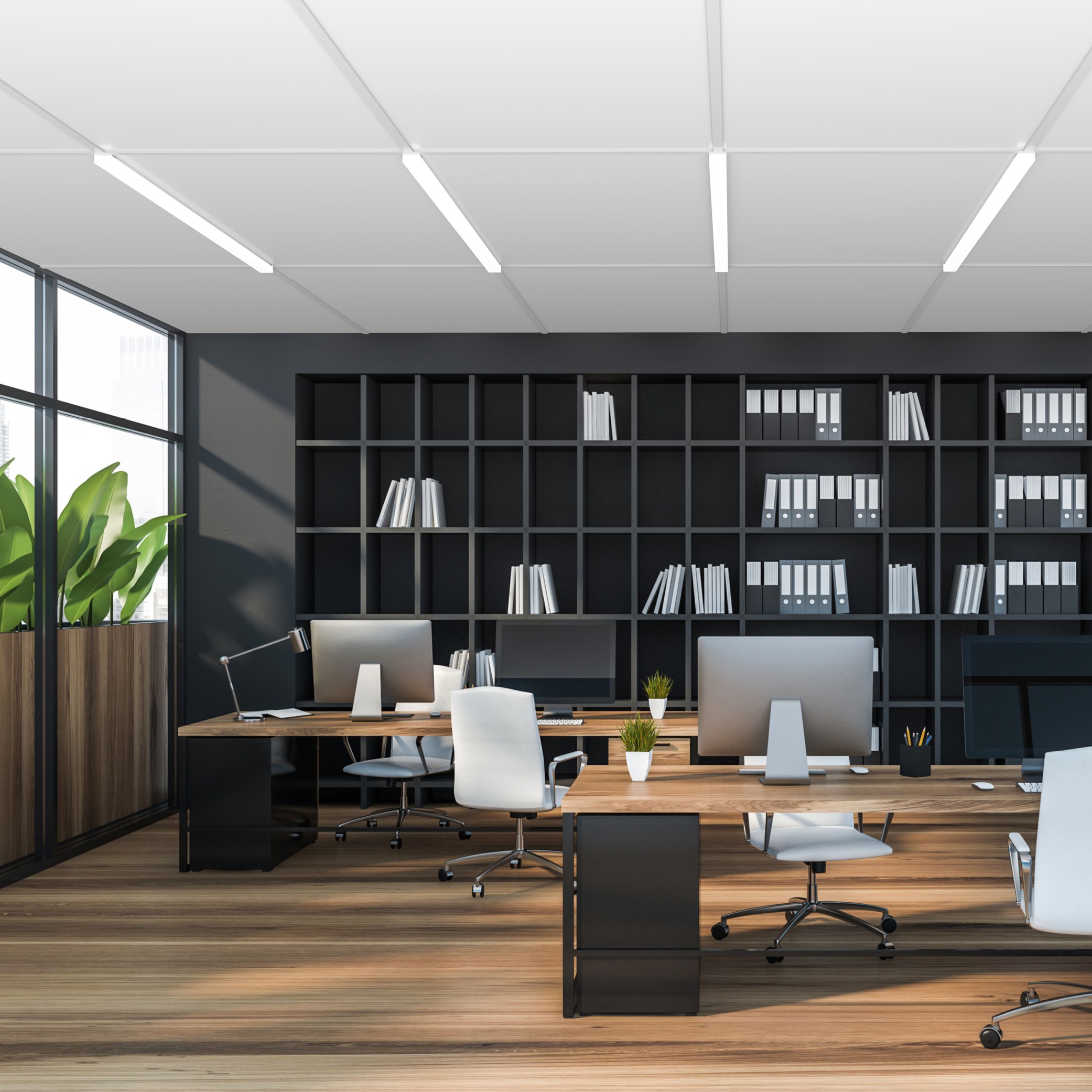

LED luminaire for recessed installation, replaces a 9/16” or 15/16” t-bar. The integrated design allows to create seamless continuous or discontinuous linear lighting arrangements that perfectly blend with the ceiling, consult factory. Ideal for architecture and commercial environments.

CONSTRUCTION

Aluminum extrusion t-grid bracket.

SHIELDING

Snap-in frosted acrylic lens.

FINISH

High gloss white polyester baked powder coat enamel.

ELECTRICAL

3000K, 4000K | 120V-277V

LED

Product ConfiguratorConfigurateur De Produit

Length

Wattage

CCT

Driver Clear

Project Name:

Type:

Efficacy:

Wattage:

Fixture Notes:

* For available options refer to the Ordering Information tab. * Pour les options disponibles, reportez-vous à l'onglet Informations de commande.
* For wattage and efficacy refer to the Technical Data tab. * Pour la puissance et la efficacité, se référer à l'onglet Données techniques.

SKU: N/A Categories: Arclux, DLC, LED

SPECIFICATION SHEET

Specification Sheet

Brochure and Installation Sheet

IES Files

Technical Data

ORDERING CODE	LUMENS	CCT	WATTAGE	EFFICACY
TB-2-10W-35K	1300lm	3500K	10W	128lm/W
TB-2-10W-40K	1300lm	4000K	10W	130lm/W
TB-2-10W-50K	1300lm	5000K	10W	130lm/W
TB-4-20W-35K	2500lm	3500K	20W	127lm/W
TB-4-20W-40K	2600lm	4000K	20W	130lm/W
TB-4-20W-50K	2600lm	5000K	20W	130lm/W

Technical Data

CATALOGUE NUMBER	LUMENS (lm)	CCT (K)	WATTAGE (W)	EFFICACY (lm/W)
TB-2-10W-35K-MV	1300	3500K	10	128
TB-2-10W-40K-MV	1300	4000K	10	130
TB-2-10W-50K-MV	1300	5000K	10	130
TB-4-20W-35K-MV	2500	3500K	20	127
TB-4-20W-40K-MV	2600	4000K	20	130
TB-4-20W-50K-MV	2600	5000K	20	130

IES Files

GENERAL DESCRIPTION:

LED luminaire for recessed installation, replaces a 9/16″ or 15/16″ t-bar. The integrated design allows to create seamless continuous or discontinuous linear lighting arrangements that perfectly blend with the ceiling, consult factory. Ideal for architecture and commercial environments.

CONSTRUCTION:

Aluminum extrusion.

SHIELDING:

Snap-in frosted acrylic lens.

FINISH:

High gloss white polyester baked powder coat enamel.

ELECTRICAL:

3500K, 4000K, 5000K | 120V-277V
L80 performance at 60,000 hours minimum. 80 CRI Standard.Other dimming options, lumen options, 90CRI and lengths available.Consult factory.

CERTIFICATION:

Approved to UL1598 and CSA C22.2 No. 250 standards**
Suitable for damp locations.
*LED Five (5) year limited warranty.
**Normal temperature: -20 degrees Celsius to +25 degrees Celsius.
***Not all available products are DLC qualified. Check the DLC Qualified Products List at designlights.org to confirm which versions are qualified.
