Round . High Bay

1.00 $

General DescriptionDescription Générale

CERTIFICATIONS

DLC-logo
DLC-logo
DLC-logo

DESCRIPTION

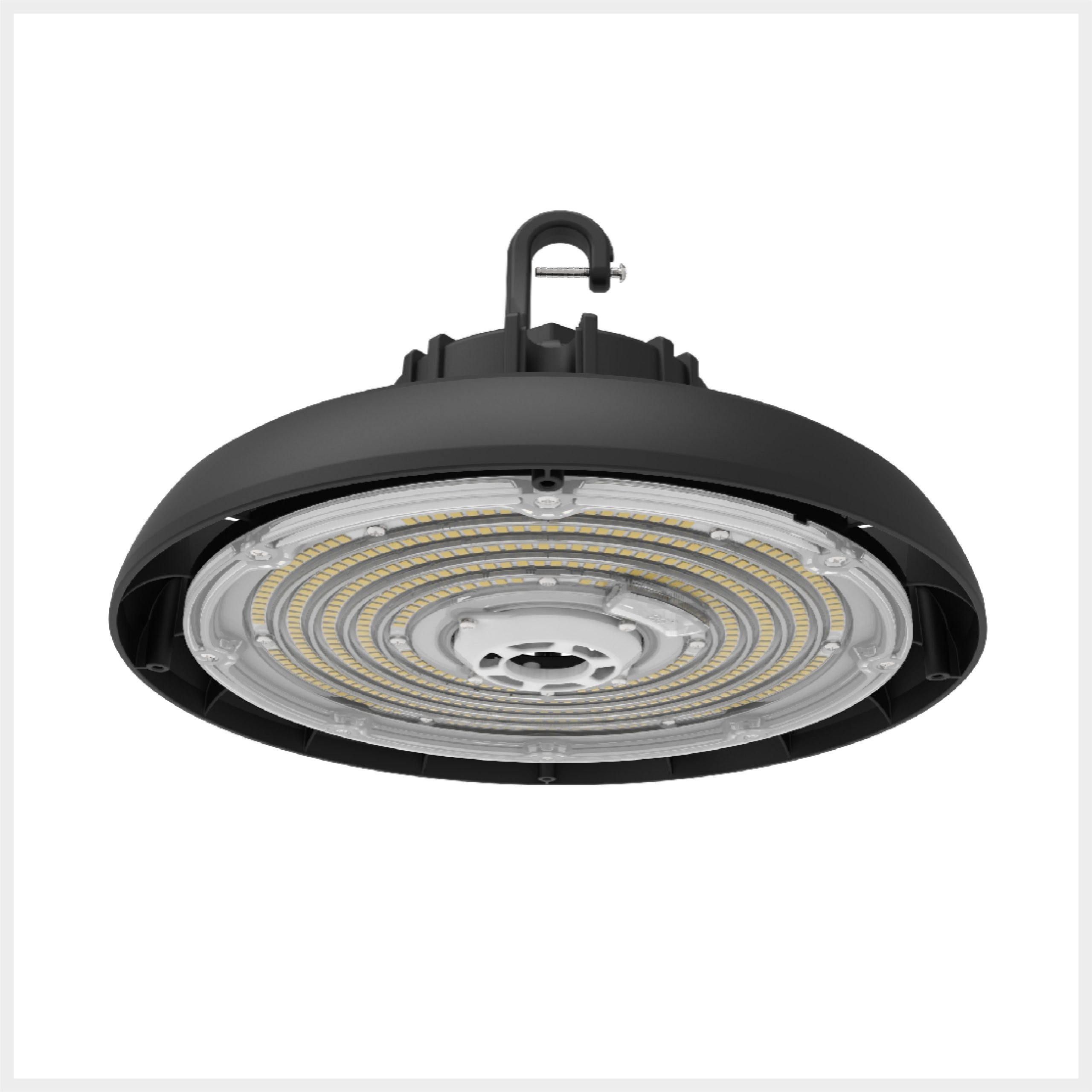

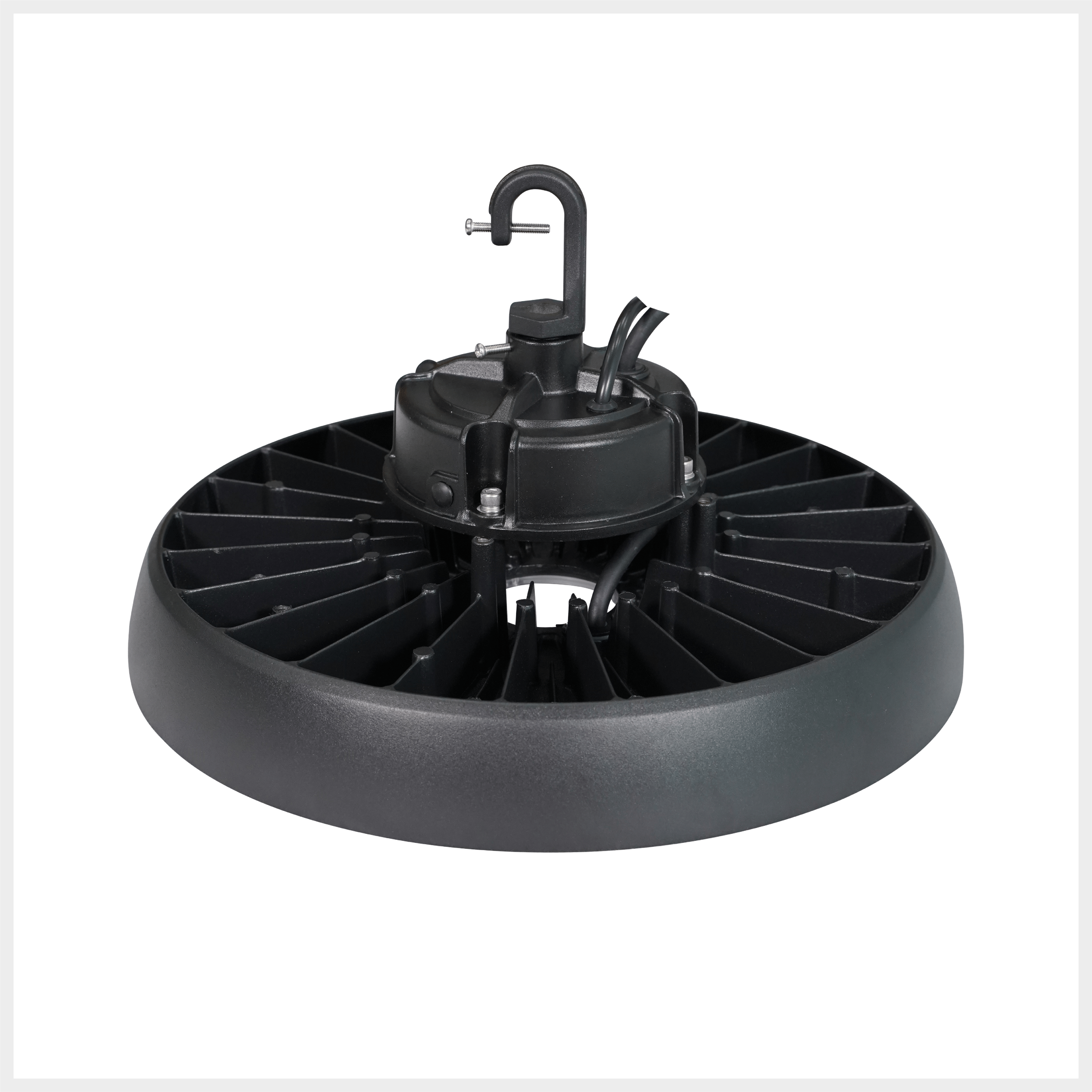

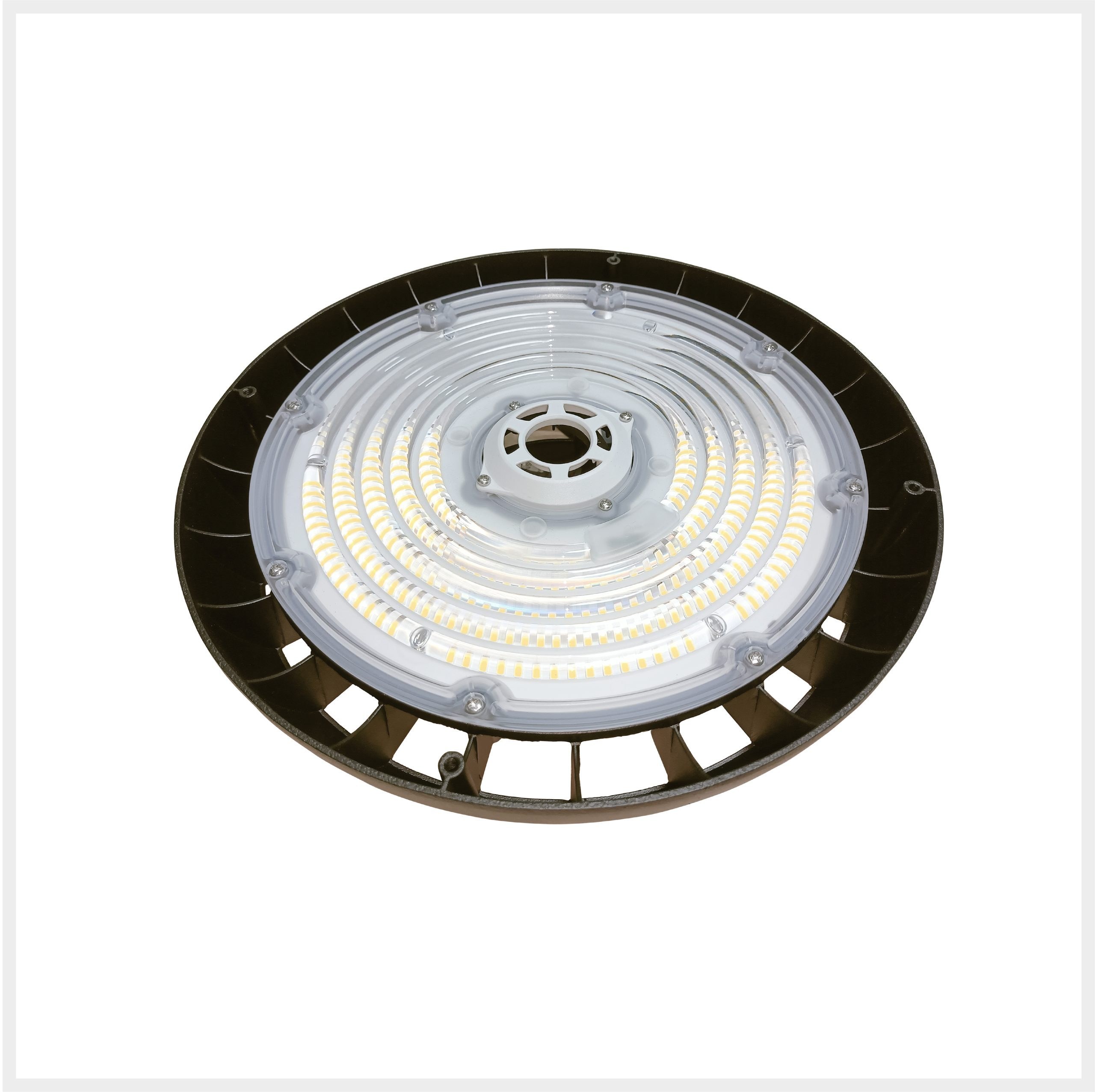

LED luminaire for suspended installation. Ideal for warehouses, factories and workshops. Also, highway toll stations and gas stations; exhibition halls; gymnasiums and supermarkets, etc.

CONSTRUCTION

Aluminum.

SHIELDING

Polycarbonate lens.

FINISH

Standard finish is a high gloss black polyester baked powder coat enamel. White available, consult factory.

ELECTRICAL

3500K, 4000K, 5000K | 120V-347V

LEDLED

Product ConfiguratorConfigurateur De Produit

RHB
Clear

* For available options refer to the Ordering Information tab. * Pour les options disponibles, reportez-vous à l'onglet Informations de commande.
* For wattage and efficacy refer to the Technical Data tab. * Pour la puissance et la efficacité, se référer à l'onglet Données techniques.
SKU: N/A Categories: , ,
Builder
{{item.title}}
  • {{tag.title}} - {{tag.selected.name}} +
Reset all
Ordering Code:
Product Summary:
Order Summary:
Add to Project
copy

Copy Code
Add to Cart
copy

Copy Code

Accessories
{{item.name}}
loading

SPECIFICATION SHEET

Specification Sheet

Specification Sheet

Brochure and Installation Sheet

Brochure: N/A

Installation
Technical Data

N/A

Technical Data

CATALOGUE NUMBERLUMENS (lm)CCT (K)WATTAGE (W)EFFICACY (lm/W)
CEL-51-35W-30K-MV39003000K35109
CEL-51-35W-35K-MV38003500K35108
CEL-51-35W-40K-MV38004000K35108
CEL-51-35W-50K-MV38005000K35108

IES Files

GENERAL DESCRIPTION

LED luminaire for surface or suspended installation with aircraft cables or v-hooks, consult factory. Ideal for commercial environments. Row mounting available, consult factory.

CONSTRUCTION:

Rigid one-piece body constructed from code gauge steel.

SHIELDING:

Frosted prismatic wrap-around lens.

FINISH:

High gloss white polyester baked powder coat enamel.

ELECTRICAL:

3000K, 3500K, 4000K, 5000K | 120V-277V

L80 performance at 60,000 hours minimum. 80 CRI Standard. Other dimming options, lumen options, 90CRI and lengths available. Consult factory.

CERTIFICATIONS:

Approved to UL1598 and CSA C22.2 No. 250 standards.
Suitable for damp locations.
*LED Five (5) year limited warranty.
**Normal temperature: -20 degrees Celsius to +25 degrees Celsius.
***Not all available products are DLC qualified. Check the DLC Qualified Products List at designlights.org to confirm which versions are qualified.
