SDLG-3R (Retrofit kit)SDLG-3R (Retrofit kit)

SDLG-3R (Retrofit kit)

SDL . G . Retrofit Kit

1.00 $

General DescriptionDescription Générale

CERTIFICATIONS

DLC-logo
DLC-logo
DLC-logo

DESCRIPTION

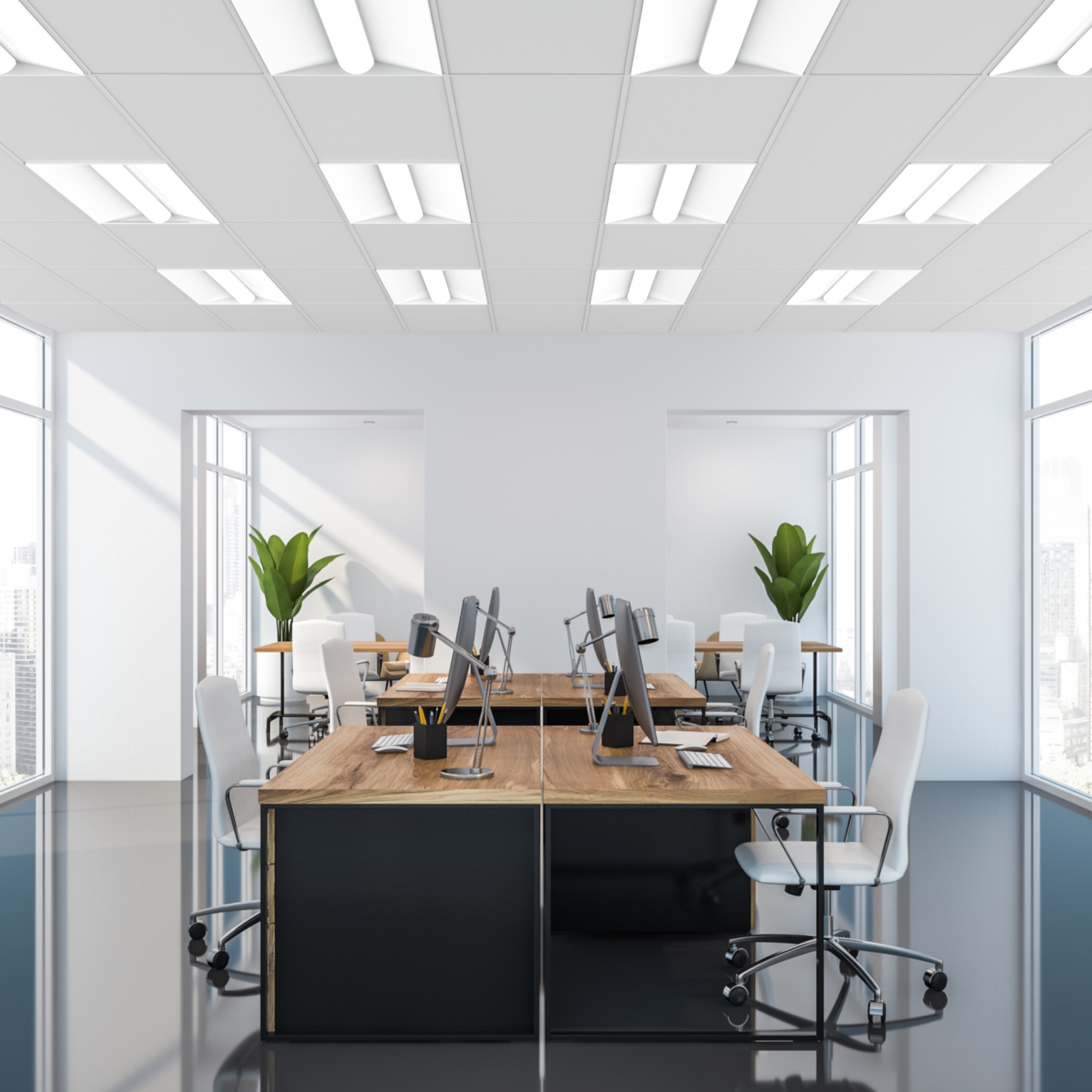

LED Retrofit luminaire for recessed installation for 15/16” T-grid ceilings. Frosted acrylic lens with a rigid one-piece body constructed from code gauge steel with contoured steel reflector. Includes hinged and latched frame for ease of installation and maintenance. Ideal for retrofitting existing indoor general area lighting, retail space and other commercial lighting.

CONSTRUCTION

Body constructed from code gauge steel with contoured steel reflector.

SHIELDING

Frosted acrylic lens.

FINISH

High gloss white polyester baked powder coat enamel.

ELECTRICAL

3000K, 4000K, 5000K | 120V-347V

LEDLED

Product ConfiguratorConfigurateur De Produit

SDLG-3R (Retrofit kit)
Clear

* For available options refer to the Ordering Information tab. * Pour les options disponibles, reportez-vous à l'onglet Informations de commande.
* For wattage and efficacy refer to the Technical Data tab. * Pour la puissance et la efficacité, se référer à l'onglet Données techniques.
SKU: N/A Categories: , , Tag:
Builder
{{item.title}}
  • {{tag.title}} - {{tag.selected.name}} +
Reset all
Ordering Code:
Product Summary:
Order Summary:
Add to Project
copy

Copy Code
Add to Cart
copy

Copy Code

Accessories
{{item.name}}
loading

SPECIFICATION SHEET

Specification Sheet

Specification Sheet

IES Files
Technical Data

CATALOGUE NUMBERLUMENS (lm) CCT (K)WATTAGE (W)EFFICACY (lm/W)
SDLG-3-1ACF-14G - adjustable on site25003500K19134
SDLG-3-1ACF-14G - adjustable on site32003500K24135
SDLG-3-1ACF-14G - adjustable on site41003500K30135
SDLG-3-1ACF-14G-35W-35K-MV346003500K35133
SDLG-3-1ACF-14G - adjustable on site26004000K18143
SDLG-3-1ACF-14G - adjustable on site33004000K24142
SDLG-3-1ACF-14G - adjustable on site42004000K30140
SDLG-3-1ACF-14G-35W-40K-MV348004000K35138
SDLG-3-1ACF-22G - adjustable on site25003500K19137
SDLG-3-1ACF-22G - adjustable on site32003500K24137
SDLG-3-1ACF-22G - adjustable on site41003500K30135
SDLG-3-1ACF-22G-35W-35K-MV346003500K35133
SDLG-3-1ACF-22G - adjustable on site25004000K18141
SDLG-3-1ACF-22G - adjustable on site33004000K24139
SDLG-3-1ACF-22G - adjustable on site42004000K30138
SDLG-3-1ACF-22G-35W-40K-MV348004000K35138
SDLG-3-1ACF-24G - adjustable on site61003500K47130
SDLG-3-1ACF-24G - adjustable on site53003500K39133
SDLG-3-1ACF-24G - adjustable on site47003500K35135
SDLG-3-1ACF-24G - adjustable on site60004000K47130
SDLG-3-1ACF-24G - adjustable on site52004000K39129
SDLG-3-1ACF-24G - adjustable on site46004000K35132

IES Files

GENERAL DESCRIPTION:

LED luminaire for recessed installation for 15/16” T-grid ceilings. Ideal for indoor general area lighting, retail space and other commercial lighting. IE control available, consult factory.

CONSTRUCTION:

Rigid one-piece body die-formed of code gauge steel. Contoured steel reflector.

SHIELDING:

Frosted acrylic lens.

FINISH:

High gloss white polyester baked powder coat enamel.

ELECTRICAL:

3000K, 3500K, 4000K, 5000K | 120V-347V
L80 performance at 60,000 hours minimum. 80 CRI Standard.

CERTIFICATIONS:

Approved to UL1598 and CSA C22.2 No. 250 standards**
Suitable for damp locations.
*LED Five (5) year limited warranty.
**Normal temperature: -20 degrees Celsius to +25 degrees Celsius.
***Not all available products are DLC qualified. Check the DLC Qualified Products List at designlights.org to confirm which versions are qualified.
