WPE
1.00 $
General DescriptionDescription GénéraleCERTIFICATIONS

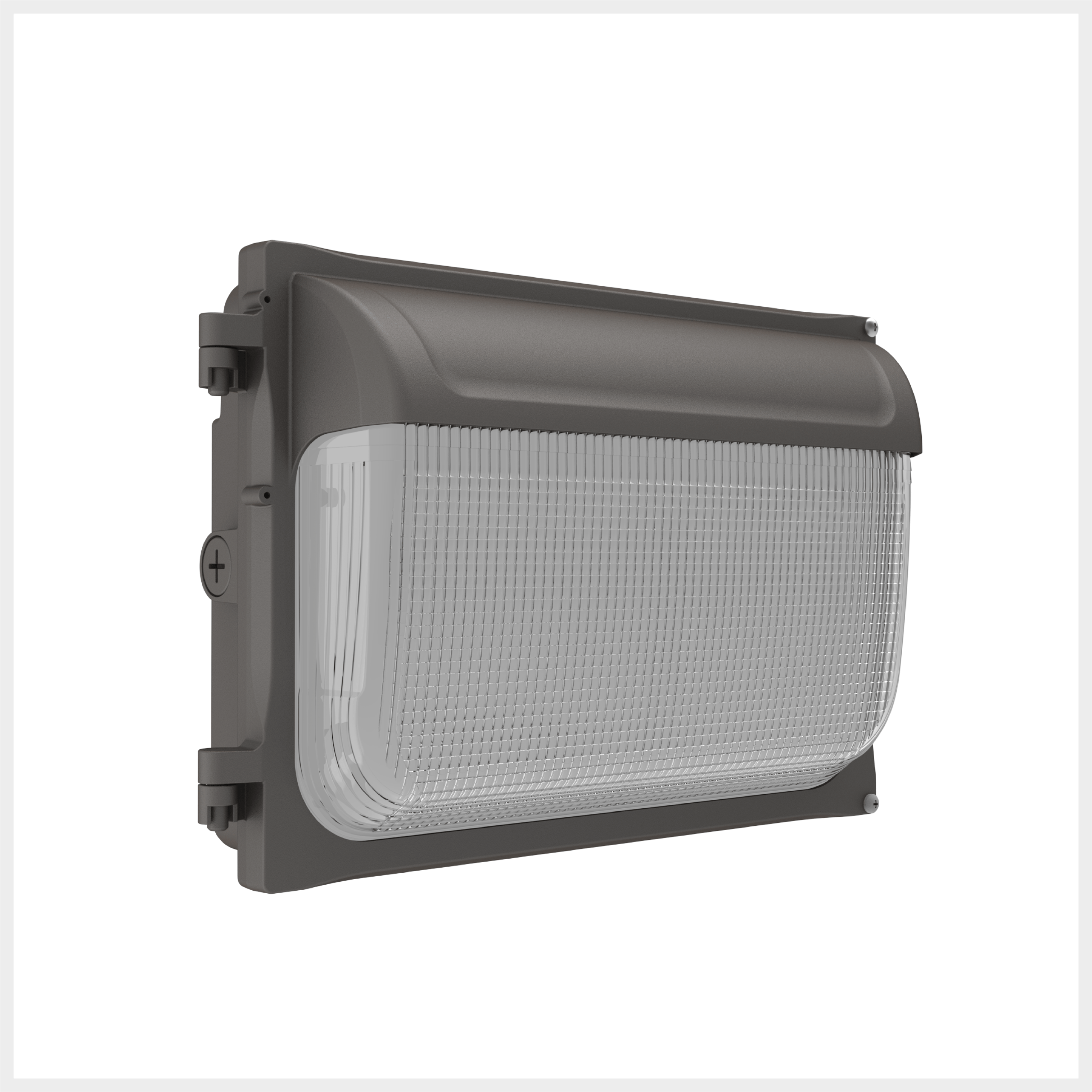

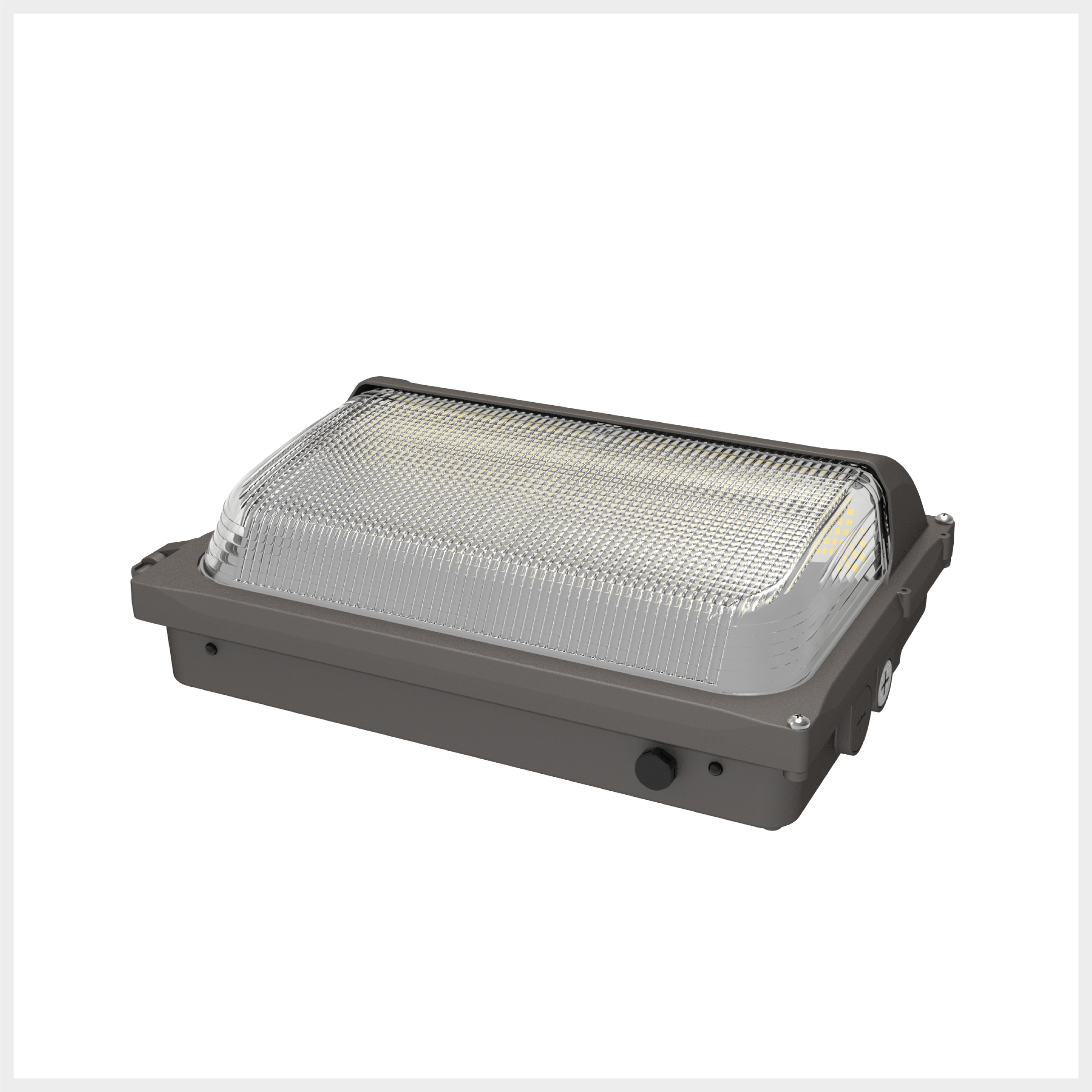

LED luminaire for wall mounted installation. Ideal for entrance lighting, courtyard lighting, industrial lighting, outdoor landscape lighting, hotels, wall lighting areas, etc.
CONSTRUCTION
Aluminum.
SHIELDING
Polycarbonate lens.
ELECTRICAL
3000K, 4000K, 5000K | 120V-347V
LEDLED
Brochure: N/A
N/A
| CATALOGUE NUMBER | LUMENS (lm) | CCT (K) | WATTAGE (W) | EFFICACY (lm/W) |
|---|---|---|---|---|
| CEL-51-35W-30K-MV | 3900 | 3000K | 35 | 109 |
| CEL-51-35W-35K-MV | 3800 | 3500K | 35 | 108 |
| CEL-51-35W-40K-MV | 3800 | 4000K | 35 | 108 |
| CEL-51-35W-50K-MV | 3800 | 5000K | 35 | 108 |
GENERAL DESCRIPTION
LED luminaire for surface or suspended installation with aircraft cables or v-hooks, consult factory. Ideal for commercial environments. Row mounting available, consult factory.
CONSTRUCTION:
Rigid one-piece body constructed from code gauge steel.
SHIELDING:
Frosted prismatic wrap-around lens.
FINISH:
High gloss white polyester baked powder coat enamel.
ELECTRICAL:
3000K, 3500K, 4000K, 5000K | 120V-277V
L80 performance at 60,000 hours minimum. 80 CRI Standard. Other dimming options, lumen options, 90CRI and lengths available. Consult factory.
CERTIFICATIONS:
Approved to UL1598 and CSA C22.2 No. 250 standards.
Suitable for damp locations.
*LED Five (5) year limited warranty.
**Normal temperature: -20 degrees Celsius to +25 degrees Celsius.
***Not all available products are DLC qualified. Check the DLC Qualified Products List at designlights.org to confirm which versions are qualified.
