Products

SLSL

SL

Steel Frame / Latches

1.00 $

General DescriptionDescription Générale

CERTIFICATIONS

BAA-logo
Intertek-logo
Warranty-logo

DESCRIPTION

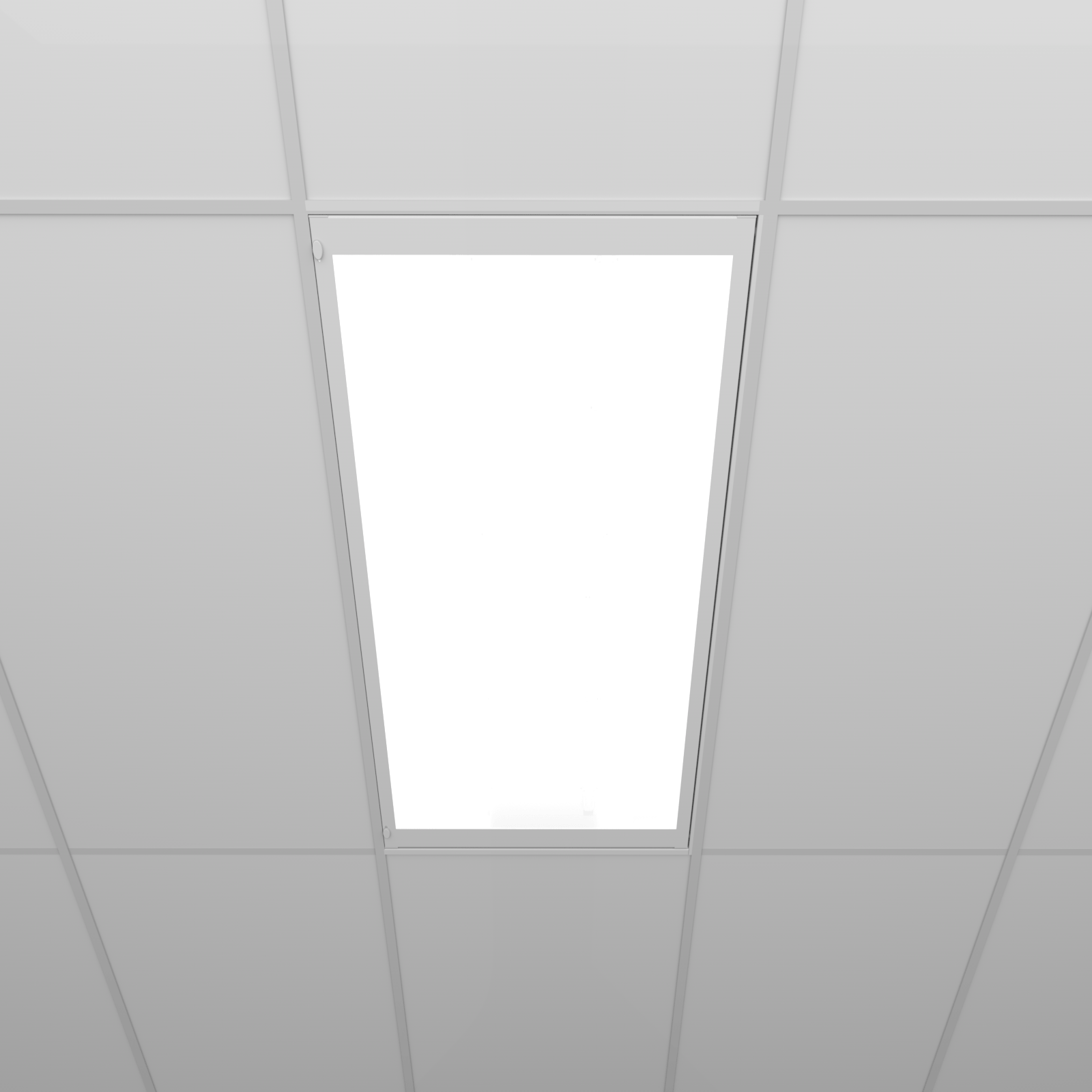

LED luminaire for recessed in an exposed flat 15/16” T-grid ceiling. “Protective” fixture alternative is available, with tamper resistant mounting screws and polycarbonate lens. Plaster frame kit available, consult factory. Ideal for commercial environments.

CONSTRUCTION

Steel frame retained with pin hinges and latches with locking thumb screws.

SHIELDING

Standard lens is #12 clear prismatic acrylic diffuser.

FINISH

Standard finish is high gloss white polyester baked powder coat enamel.

ELECTRICAL

3000K, 3500K, 4000K | 120V-277V | 347V

LED

Product ConfiguratorConfigurateur De Produit

SL
Clear

* For available options refer to the Ordering Information tab. * Pour les options disponibles, reportez-vous à l'onglet Informations de commande.
* For wattage and efficacy refer to the Technical Data tab. * Pour la puissance et la efficacité, se référer à l'onglet Données techniques.
SKU: N/A Categories: , ,
Builder
{{item.title}}
  • {{tag.title}} - {{tag.selected.name}} +
Reset all
Ordering Code:
Product Summary:
Order Summary:
Add to Project
copy

Copy Code
Add to Cart
copy

Copy Code

Accessories
{{item.name}}
loading

SPECIFICATION SHEET

Specification Sheet

Specification Sheet

Brochure and Installation Sheet
Brochure
Consult factory for an installation sheet : info@peerless-electric.com
Technical Data

Consult factory: info@peerless-electric.com

Technical Data


Coming Soon!

IES Files

GENERAL DESCRIPTION:

LED luminaire for recessed in an exposed flat 15/16” T-grid ceiling. Ideal for commercial environments.

CONSTRUCTION:

Steel frame retained with pin hinges and positive slide latches with locking thumb screws. “Protective” fixture alternative is available, with tamper resistant mounting screws and polycarbonate lens.

SHIELDING:

Supplied with pattern #12 clear prismatic diffuser.
Other shielding options available.

FINISH:

Standard finish is high gloss white polyester baked powder coat enamel.

ELECTRICAL:

3000K, 3500K, 4000K | 120V-277V OR 347V
L80 performance at 60,000 hours minimum. 80 CRI Standard. Other dimming options, lumen options, 90CRI and lengths available. Consult factory.

CERTIFICATIONS:

Approved to UL1598 and CSA C22.2 No. 250 standards**
Suitable for damp locations.
*LED Five (5) year limited warranty.
**Normal temperature: -20 degrees Celsius to +25 degrees Celsius.

Installation Sheet
