SDLA-ODL

SDL / Architectural / Opal drop Lens

General DescriptionDescription Générale

CERTIFICATIONS

DLC-logo
DLC-logo

DESCRIPTION

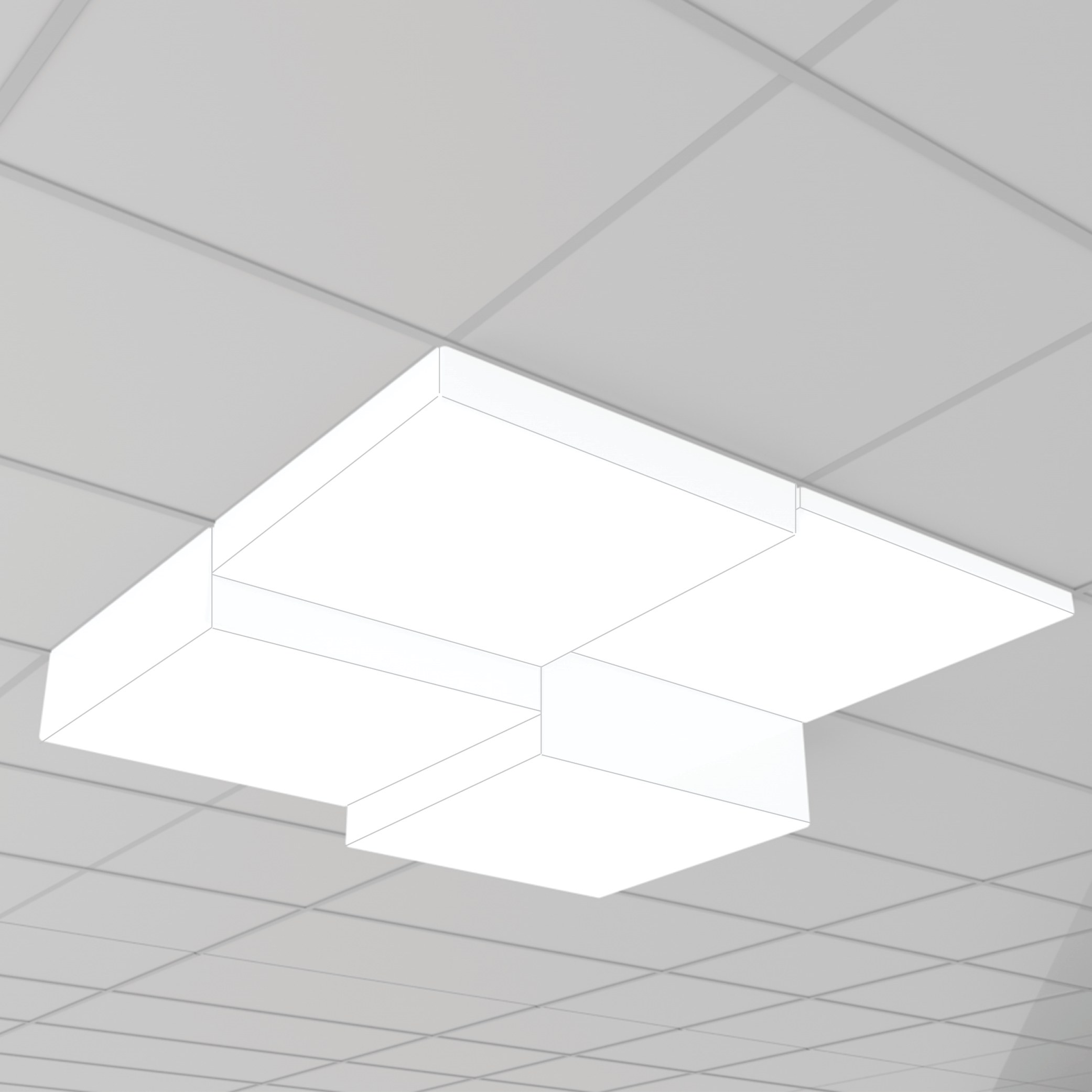

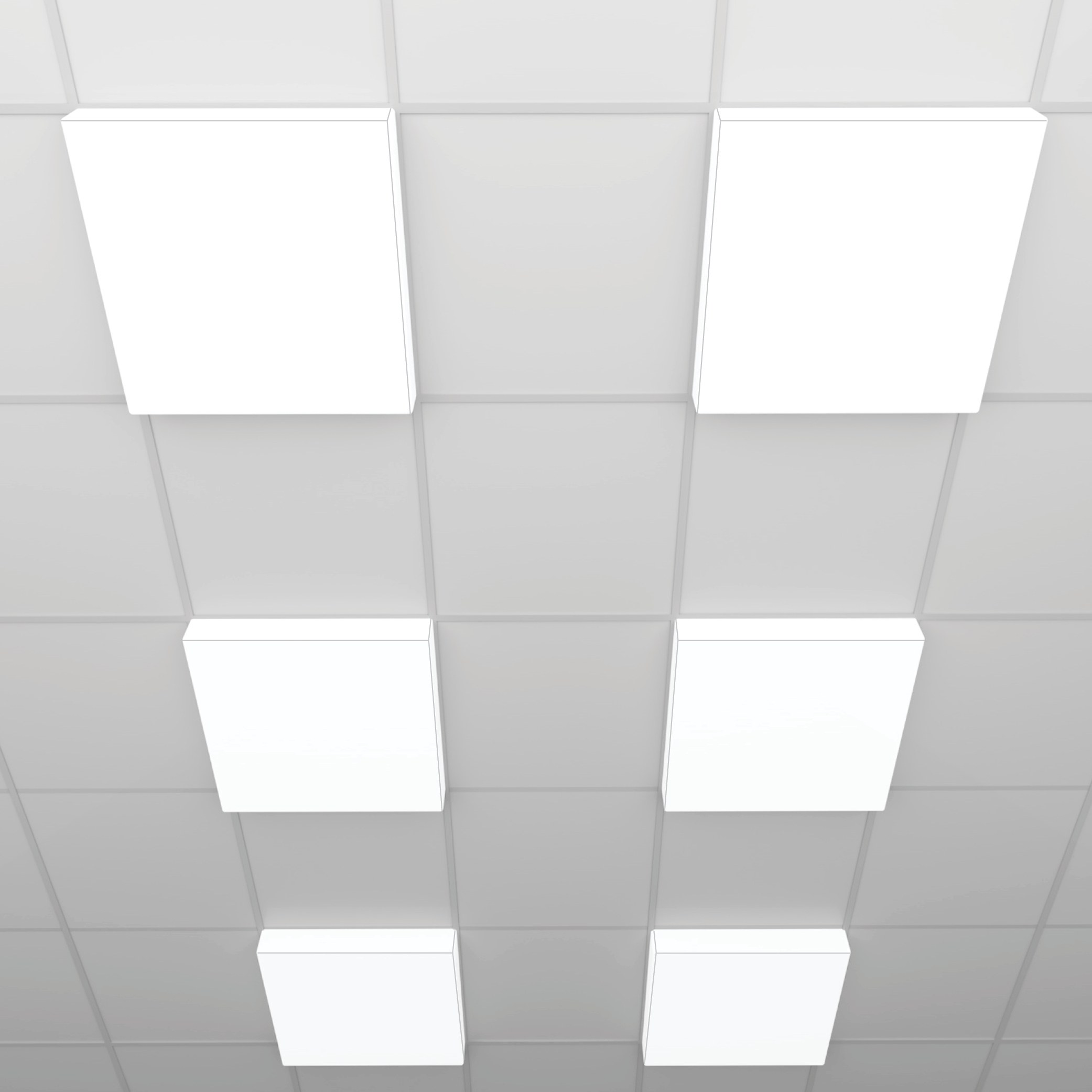

ED luminaire for recessed installation. Square frosted acrylic lens. The fixture’s drop design provides a superior quality of diffused lighting. Custom drop heights are available, consult factory. Ideal for architecture and commercial environments.

CONSTRUCTION

One-piece body constructed from code gauge steel.

SHIELDING

Square frosted acrylic lens.

FINISH

High gloss white polyester baked powder coat enamel.

ELECTRICAL

3000K, 3500K, 4000K, 5000K | 120V-277V | 347V

LED
Categories: ,
Specification Sheet
Brochure and Installation Sheet
Consult factory for an installation sheet : info@peerless-electric.com
Technical Data

Consult factory: info@peerless-electric.com

Technical Data


Coming Soon!

IES Files

GENERAL DESCRIPTION:

LED luminaire for recessed installation. The fixture’s drop design provides a superior quality of diffused lighting. Custom drop heights are available, consult factory. Ideal for architecture and commercial environments.

CONSTRUCTION:

One-piece body constructed from code gauge steel.

SHIELDING:

Square frosted acrylic lens.

FINISH:

High gloss white polyester baked powder coat enamel.

ELECTRICAL:

3000K, 3500K, 4000K, 5000K | 120V-277V or 347V
L80 performance at 60,000 hours minimum. 80 CRI Standard. Other dimming options, lumen options, 90CRI and lengths available. Consult factory.

CERTIFICATIONS:

Approved to UL1598 and CSA C22.2 No. 250 standards**
Suitable for damp locations.
*LED Five (5) year limited warranty.
**Normal temperature: -20 degrees Celsius to +25 degrees Celsius.
